U7 Pro

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

WiFi 7 with 6 GHz support
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink

Note. 6 GHz operation is supported in these countries.
Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
Add to Quote

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Brands: Ubiquiti

Product Details

We invite you to discover revolutionary connection quality with the Ubiquiti U7 Pro access point. With data transfer speeds reaching an impressive 5400 Mbit/s, this powerful piece of equipment delivers a fast and stable network. Whatever your needs – at home, in the office or in a large facility – the Ubiquiti U7 Pro is sure to meet expectations.

With Ethernet LAN data transfer capability of 1000 Mbit/s, the access point guarantees not only a seamless wireless connection, but also excellent performance within the local network. The encryption and security function includes a range of protocols, such as PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2 and WPA3, ensuring that your network is fully protected from unauthorized access.

With the ability to be placed on the ceiling or wall and a sleek white finish, the Ubiquiti U7 Pro blends in perfectly with any interior. Robust metal and polycarbonate (PC) construction ensures not only aesthetics, but also durability and reliability of the equipment, which will stand up to even the most demanding conditions.

If you’re looking for an access point that not only provides a fast and stable network, but also security and reliability, the Ubiquiti U7 Pro is the perfect solution. See for yourself how this innovative technology can revolutionize your Internet connection.

Device Type

Access Point, Ceiling Access Point, Wi-Fi 7

Dimensions

⌀206 x 46 mm
(⌀8.1 x 1.8")

WiFi Standard

WiFi 7

Spatial Streams

6

Coverage Area

140 m² (1,500 ft²)

Max. Client Count

300+

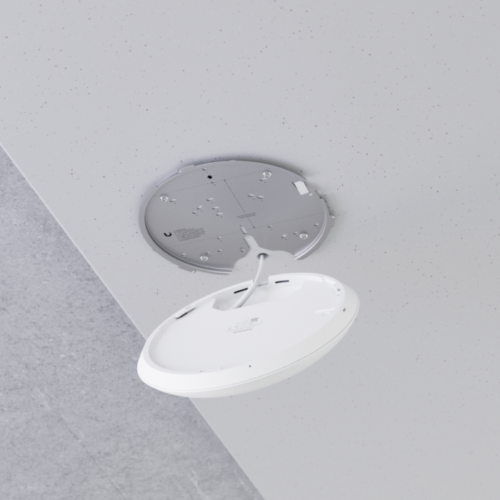

Mounting

Ceiling, Wall
(Pro Mount Included)

Power Method

PoE+

MIMO

6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain

6 GHz: 5.8 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi

Max. TX Power

6 GHz: 23 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

Max. Power Consumption

21W

Supported Voltage Range

44–57V DC

Networking Interface

(1) 1/2.5 GbE RJ45 port

Weight

680 g (1.5 lb)

Management

Ethernet

Enclosure Material

Polycarbonate, metal

Mount Material

Stainless steel (SUS304), galvanized steel (SGCC)

LEDs system

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

NDAA Compliant

Yes

Certifications

CE, FCC, IC, Anatel: 06370-24-08356

Operating Frequency

US/CA:
2400 – 2472 MHz
U-NII-1: 5150 – 5250 MHz
U-NII-2A: 5250 – 5350 MHz
U-NII-2C: 5470 – 5725 MHz
U-NII-3: 5725 – 5850 MHz
U-NII-5 to U-NII-8: 5925 – 7125 MHz

Worldwide:
2400 – 2483.5 MHz
5150 – 5850 MHz
5925 – 7125 MHz

Ambient Operating Temperature

-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Application Requirements

UniFi Network: Version 8.0.28 and later
