U7-Outdoor
● In stock

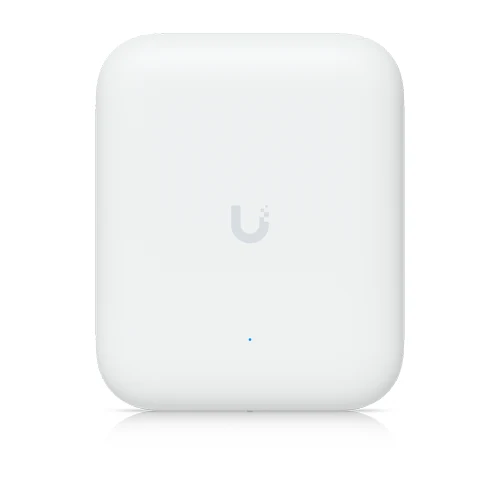

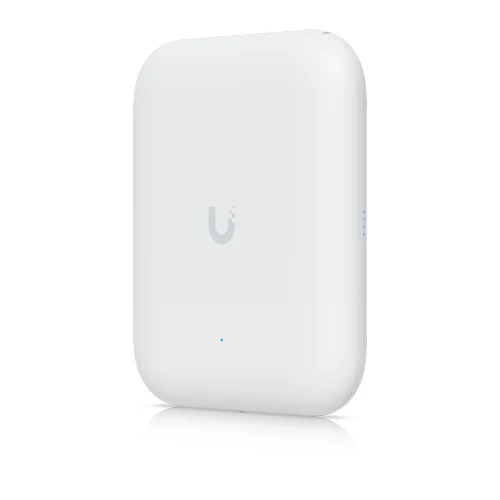

All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Video
Description

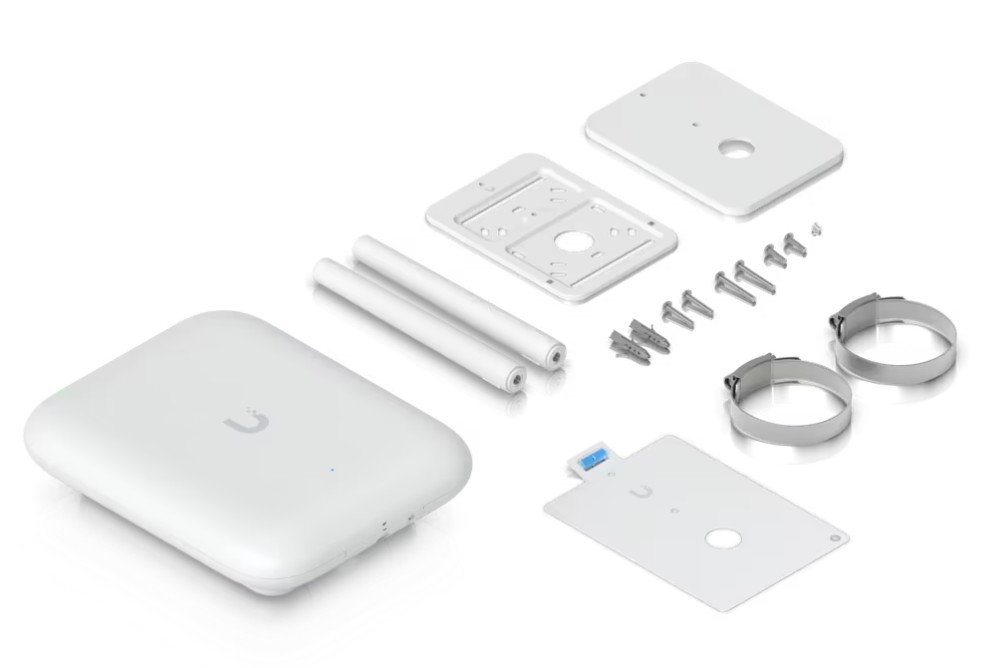

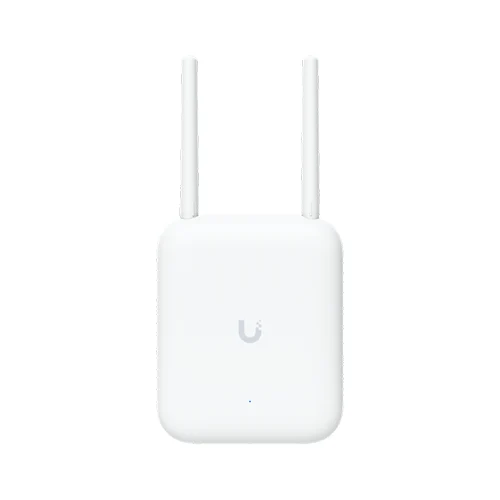

Ubiquiti’s U7-OUT is a WiFi 7 outdoor access point featuring 1x 2.5Gbps Ethernet port, versatile wall and pole mounting and is software-switchable from the internal directional antenna to the included external omni antennas. It delivers an aggregate data rate of up to 5Gbps over its 5GHz (2×2 MU-MIMO) and 2.4GHz (2×2 MU-MIMO) bands.
It can be configured and managed with the UniFi Network Application.
Additional information
| Device Type | Access Point, Outdoor, Wi-Fi 7 |
|---|---|
| Link | |
| WiFi Standard: | WiFi 7 |
| Spatial Streams: | 4 |
| Coverage Area: | 465 m² |
| Max Clients: | 250+ |

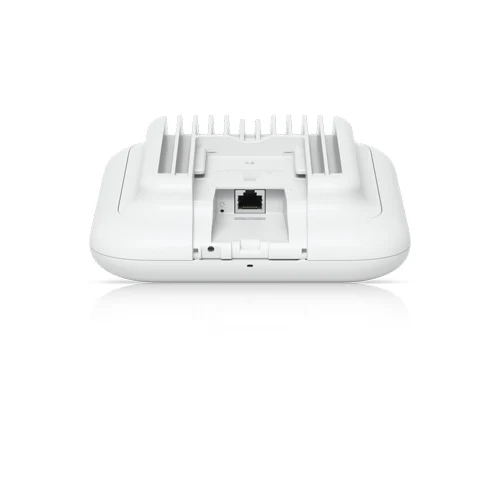

| Networking: | (1) 1/2.5 GbE RJ45 |
| Uplink: | 2.5 GbE |
| Power: | PoE+, 19 W max |
| Antennas: | (1) Directional internal antenna |
| Weatherproofing: | IPX6 |

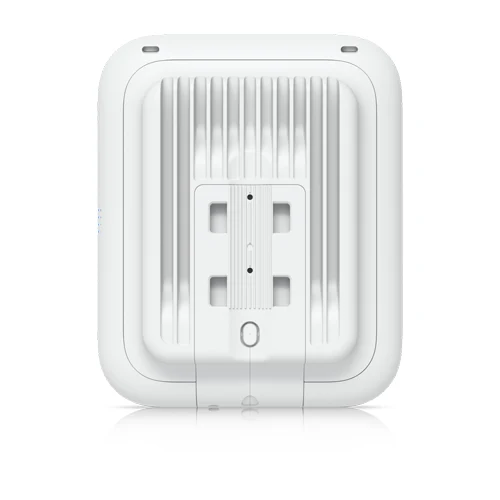

| Mounting: | Wall / Pole |
| Dimensions: | 170 × 208 × 54.5 mm |
| Weight: | 1.2 kg |
| Operating Temperature: | −30 to 60 °C |
| Certifications: | CE, FCC, IC |
| NDAA Compliant: | Yes |
| PerformanMIMOce | 5 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW240) |
| Antenna Gain | 5 GHz: 4.3 Gbps (BW240) |
| Max. TX Power | 5 GHz: 4.3 Gbps (BW240) |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Max. Power Consumption | 19W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Pole Mount Diameter | 1–2.36" (25–60 mm) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Antenna beamwidth | 5 GHz: 45° |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, SGCC steel |
| LEDs | (1) Power: White/Blue |
| Channel Bandwidth | HT 20/40, |
| Operating Frequency | US/CA: Worldwide: |
| Application Requirements | UniFi Network: Version 8.2.93 and later |
