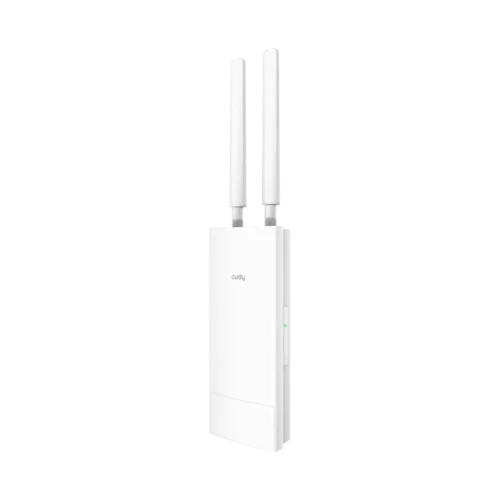

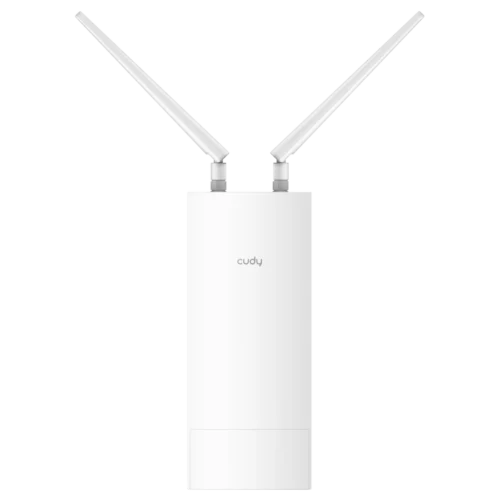

AP3000 Outdoor

In Stock

A pole/wall-mounted WiFi 6 AP featuring eFEM providing exceptional range performance. The IP65 casing, PoE, and Cudy Mesh features, ideal for high-density park, farm, and parking lot environments.

IP65, -40~70°C (-40~158°F), 6kV Surge
4-Stream Dual-Band Wi-Fi 6
2402 Mbps + 574 Mbps Wi-Fi ¹
1× Shielded GbE PoE In
802.3at, 48~57V Passive PoE
Watchdog, Schedule Reboot
Max 320 m (1050 ft) Range ²
200 Connected Devices ³

Add to Quote

Category: Cudy Tags: Access Point, Indoor, Outdoor, Wi-Fi 6

Brands: Cudy

Description
Additional information

Product Details

Cudy AP3000 Outdoor

AX3000 Wi-Fi 6 de Alta Velocidad

Wi-Fi 6 con canal de 160 MHz y modulación 1024-QAM ofrece hasta 3 Gbps de rendimiento total.
Tecnologías OFDMA y MU-MIMO permiten conectar más de 100 dispositivos con baja latencia
(máximo 512 dispositivos).

AX3000 WiFi 6

Cobertura Wi-Fi de Alta Potencia

Equipado con cinco amplificadores de potencia y una estructura de antenas 3+2,
este punto de acceso ofrece una señal potente capaz de atravesar obstáculos físicos.

Alta cobertura WiFi

Resistente a Clima Extremo

Diseño con protección IP65 contra lluvia y polvo. Incluye protección contra rayos (6 kV)
y descargas electrostáticas (8 kV). Funciona en temperaturas desde -40 °C hasta 70 °C,
ideal para uso exterior.

Uso exterior IP65

Mesh Wi-Fi con Roaming Continuo

Permite crear una red Mesh con un solo nombre de Wi-Fi para todo el espacio.
Los dispositivos se conectan automáticamente al nodo con mejor señal,
sin interrupciones ni cambios manuales.

Mesh WiFi

Instalación Plug & Play

Conecte el adaptador PoE a un router o punto de acceso Cudy compatible para añadir
automáticamente el equipo a la red Mesh. Puede usar conexión inalámbrica o Ethernet
como backhaul.

Instalación Mesh

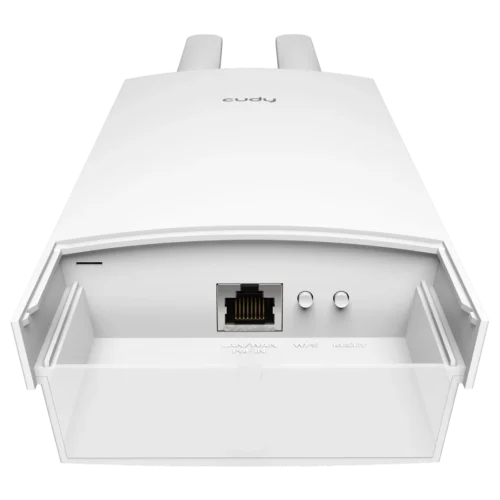

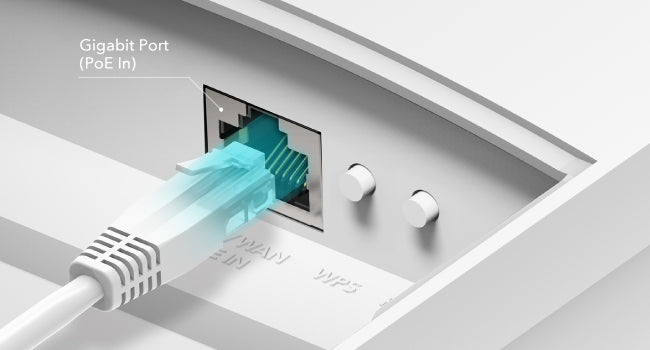

Puerto Gigabit con PoE

802.3at PoE – consumo máximo 18 W
PoE pasivo 48–57 V (adaptador incluido)

Compatible con switches PoE para instalaciones más limpias y profesionales.

Puerto PoE

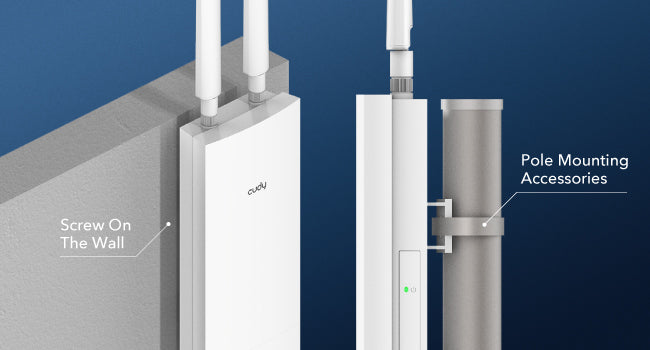

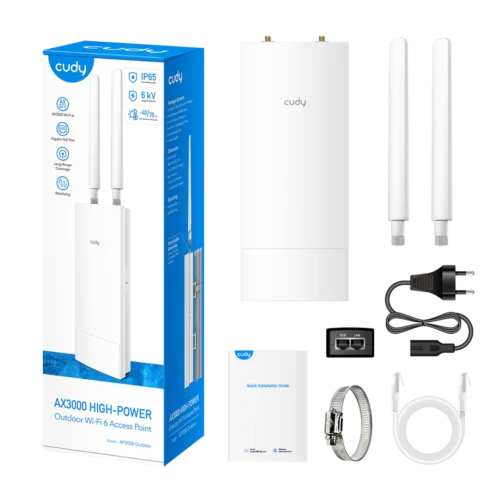

Kit de Montaje Incluido

Instalación en pared

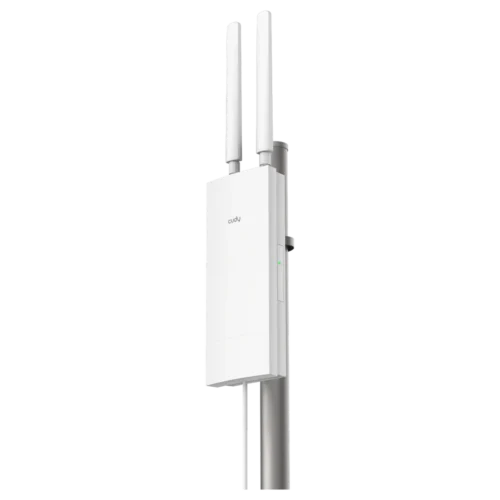

Instalación en poste

Montaje en pared o poste

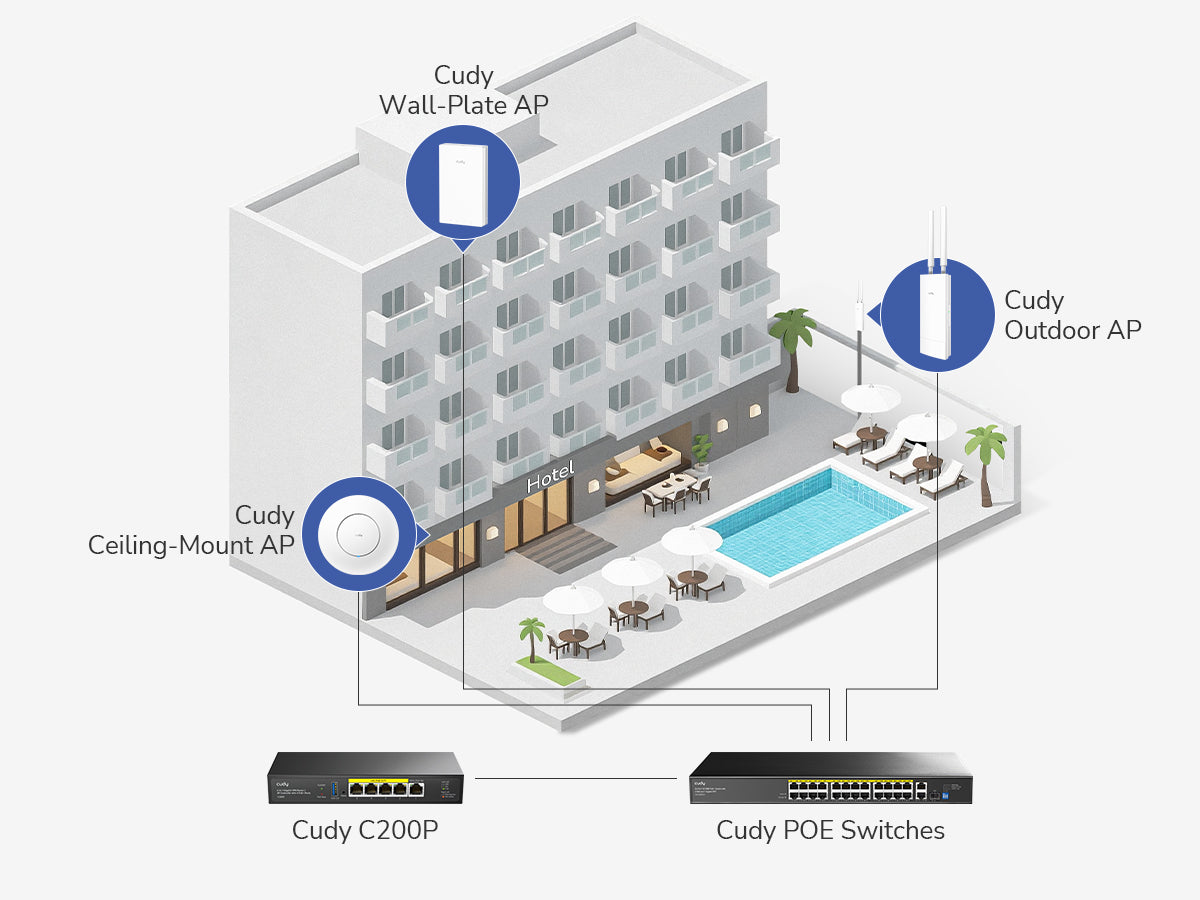

Gestión Centralizada

Permite administrar hasta 200 puntos de acceso mediante el controlador Cudy AP
(modelo C200P), facilitando configuración masiva y actualizaciones de firmware.

Gestión centralizada

Device Type	Access Point, Indoor, Outdoor, Wi-Fi 6
Link	https://www.cudy.com/products/ap3000-outdoor-1-0#features
CPU	1.3 GHz dual-core
Memory Flash/ROM	128 MB (1 Gbit) NAND
DDR/RAM	256 MB (2 Gbit) DDR3
Speed	5 GHz Wi-Fi: 2402Mbps 2.4 GHz Wi-Fi: 574Mbps
Streams	5 GHz Wi-Fi: 3T3R (3×3 MIMO) 2.4 GHz Wi-Fi: 2T2R (2×2 MIMO)

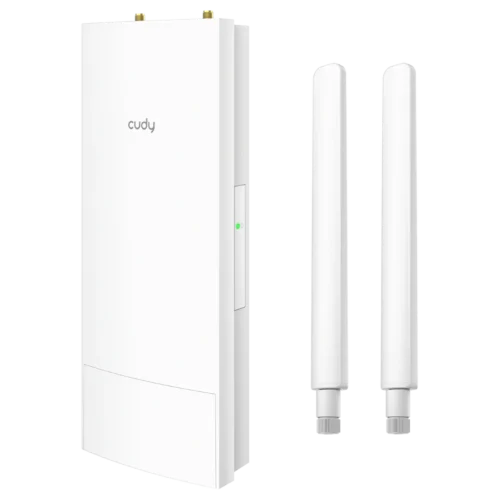

Wi-Fi Antennas	1× Internal+2× External
FEM or PA/LNA	5 GHz: 3× High-Power 2.4 GHz: 2× High-Power
Detachable Wi-Fi Antennas Connector	RP-SMA Female
Beamforming	True
Wall Performance	NA
Gigabit RJ45 Ports	1
Ethernet Notes	Accepts PoE powering
LED	System
Physical Buttons	WPS Button Reset Button
Power Interface	PoE via Ethernet Port
Power Methods	802.3at PoE Passive PoE
Power Input-an-unordered-list	PoE: 802.3at, Passive PoE: 48-57V⎓
Power Adapter in the Box	Input: 100-240V~, 50/60Hz Output: 48V⎓ Passive PoE
Max Power Consumption (W)	18 W
Idle Power Consumption (W)	5 W
Advanced	Hardware Watchdog
EMC	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment	Operating Temperature: -40 ℃ ~ 65 ℃ (-40 ℉ ~149 ℉) Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 0% ~ 100% non-condensing Storage Humidity: 10% ~ 95% non-condensing
Ingress Protection Rating	IP65 When devices is installed vertically
Certifications	FCC, CE
Installation	Wall-mount Pole-mount
Dimension	Main Part: 240×100×53.7 mm 9.45×3.94×2.11 inches Antenna: 197.5×21.6×15.5 mm 7.78×0.85×0.61 inches
Product Weight	455 g (16.05 oz.)
Wi-Fi Standards	Wi-Fi 6
Max Wi-Fi Modulation	1024-QAM
Wi-Fi Efficiency	OFDMA MU-MIMO BSS Color
Max Capacity	256
Recommended Client Upper Limit	200
Max Wi-Fi Channel Width	160 MHz
Wi-Fi Security	WPA/WPA2/WPA3
WPS	True
Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
Mesh	Cudy Mesh
Mesh Backhaul	Wireless Backhaul Wired Backhaul
Multi-Band Backhaul	True
WAN Mode	DHCP Static IP PPPOE PPTP L2TP
QoS	Per-User Rate Limiting
DHCP	Address Reservation DHCP Client List Server
IP Versions	IPv4/IPv6
IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
TTL Customization	Extend Spoof Custom
IGMP	IGMP Proxy IGMP Snooping
Forwarding	Port Forwarding Port Triggering UPnP DMZ
Firewall	SPI Firewall DoS Protection Block PING
Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Captive Portal	True
VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
DNS over TLS Providers	Cloudflare Google Quad9 Custom
Wake on LAN	True
Online Detection	True
All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
Content Management	Domain Filter IP Filter
LED Control	True
Local Control Method	Config Web Page App Control
Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
Firmware Upgrade	Local Update App (Over the Air) Online Update
Reliability	Timed Reboot Backup and Restore
Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
Dashboard Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
Chart	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
Internet Failover Sequence	WAN WISP
