Name: GS1020PS2
Brand: Cudy

GS1020PS2

● In stock

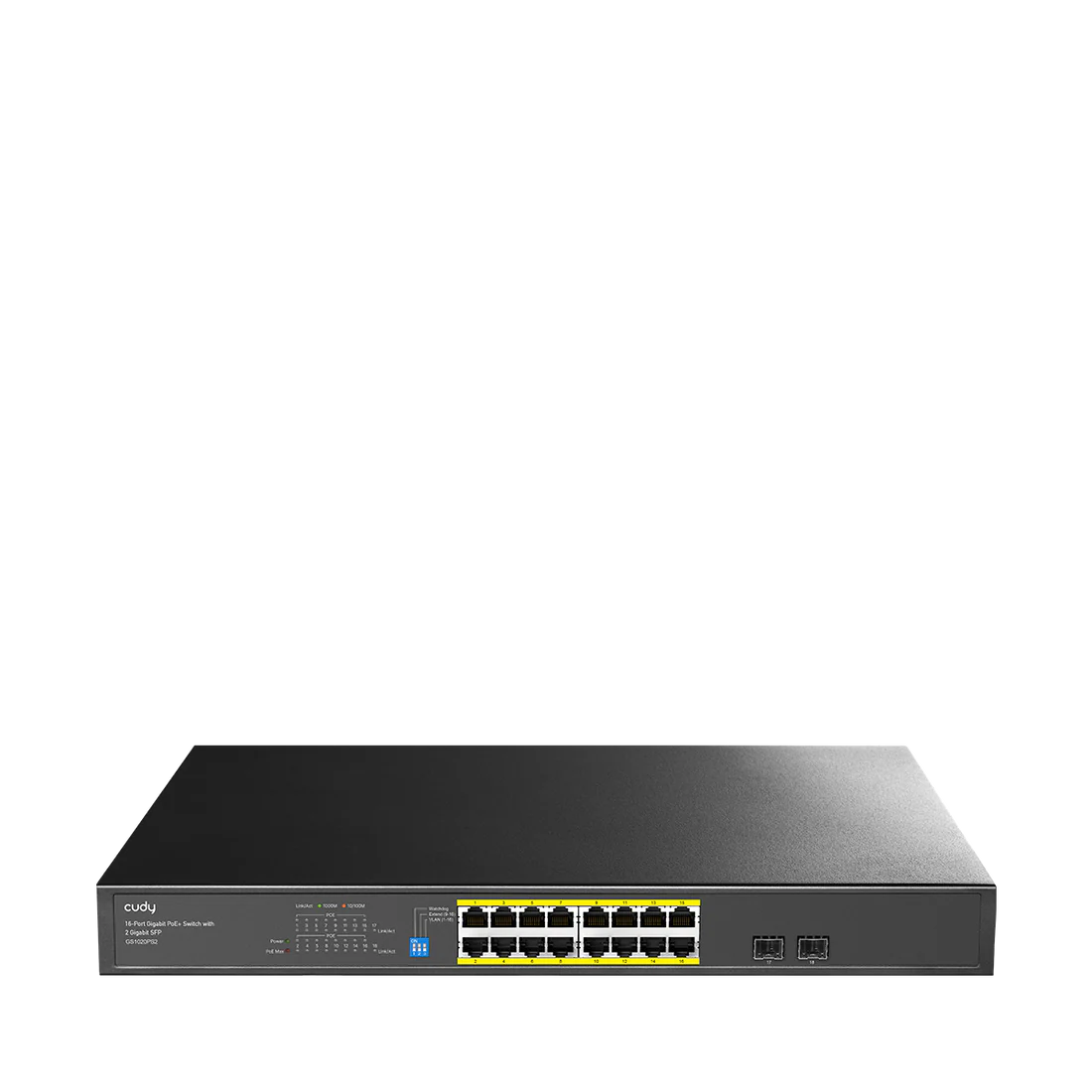

A rack-mounted 16-GbE, 2-SFP PoE switch with a 200W power supply and a silent cooling system.

Add to Quote

Description

Additional information

Device Type	POE Switch, Switches
Hardware Specifications	Model GS1020PS2 3.0 16× Gigabit RJ45 PoE ports, 2× 1.25G SFP slots Max PoE per port 30W, IEEE 802.3af/at compliant Extend Mode Ports #9–#16, VLAN Mode Ports #1–#16 MAC address table 8192 entries Max switching capacity 36 Gbps, forwarding rate 26.78 Mpps Jumbo frame 15 KB, packet buffer 4 Mbit Copper cable distance Cat5e 100 m@1 Gbps, Extend Mode 250 m@10 Mbps Power AC 100–240V~, 200W (14W excluding PoE) Operating temp 0~40 ℃, storage temp -40~70 ℃ Casing Metal, Installation Desktop/Rackmount
Software/Network Specifications	Protocols 802.3i/10BASE-T, 802.3u/100BASE-TX, 802.3ab/1000BASE-T, 802.3z/1000BASE-X, 802.3x Flow Control, 802.3af/at PoE Layer 2 features Loop Prevention, Loop Detection, DSCP QoS, 802.1p QoS Management Intelligent PoE, Web-based configuration, firmware upgrade
Link	https://www.cudy.com/products/gs1020ps2-3-0#overview
