An xPON Wi-Fi 6 router featuring GPON/EPON dual modes, CWMP, OMCI, IPTV (IGMP Proxy/Bridge/Tag VLAN), and EasyMesh, suitable for FTTH solution deployment.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

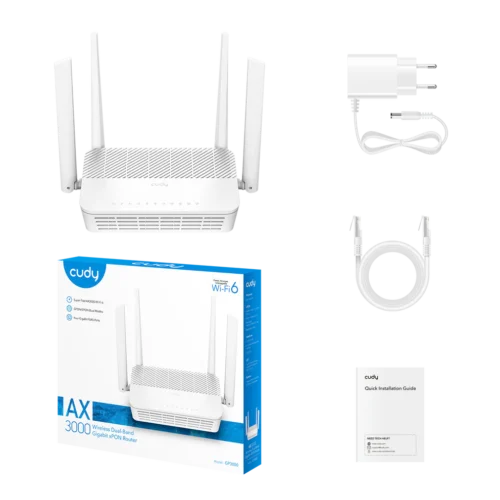

The Cudy GP3000 is an advanced AX3000 Wireless Dual-Band Gigabit xPON Router designed to deliver high-performance networking solutions. It supports Wi-Fi 6 technology for faster speeds and improved efficiency, along with Gigabit Ethernet ports for robust wired connectivity. This router is ideal for Fiber-to-the-Home (FTTH) deployments, offering advanced features for both service providers and end-users.
| Device Type | Dual Band, Routers, Wi-Fi 6, xPON ONT |
|---|---|
| Link | |
| CPU Details | 1 GHz Dual-Core |
| Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 512 MB (4 Gbit) DDR3L |
| Protocols | GPON (ITU G. 984 standard, Class B+) |
| Wavelength | TX: 1310 nm |
| Max Transmission Distance | 20 km |
| Speed | 5 GHz: 2402 Mbps |
| Streams | 5 GHz: 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 4× Fixed |
| FEM or PA/LNA | 5 GHz: 2× External |
| Beamforming | True |
| Range Performance Max: | 170 m (558 ft) |
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') |

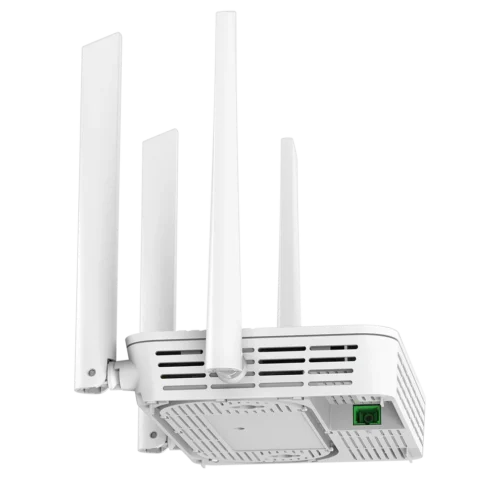

| SC/APC Port | 1 |

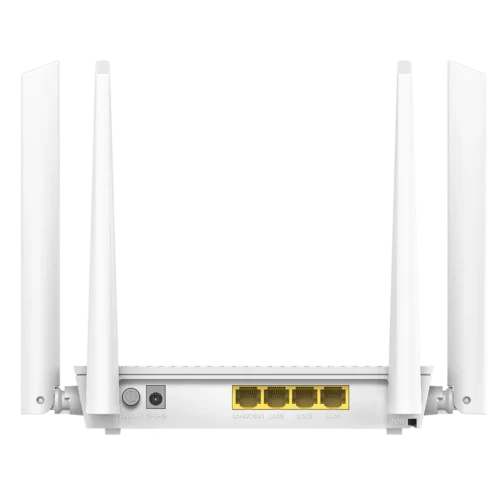

| Gigabit RJ45 Ports | 4 |
| Ethernet Notes | 1× LAN/WAN port, the rest are LAN ports. |
| USB-A 3.0 Ports | Optional for ISP Order |
| LED | Power |
| Physical Buttons | Power On/Off Button |
| Power Input | DC Jack |
| Power Methods | DC |
| DC Input | 12V 1.5A |
| Power Adapter | Input: 100-240V~, 50/60 Hz |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) |
| Certifications | FCC, CE |
| Installation | Desktop |
| Dimension | 173×123.8×33 mm |
| Product Weight | 352.0 g (12.42 oz.) |
| Wi-Fi Standards | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM |
| Wi-Fi Efficiency | OFDMA |
| Max Capacity | 256 |
| Recommended Client Upper Limit | 100 |
| Max Wi-Fi Channel Width | 160 MHz |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| Guest Network | 2.4 GHz, 5 GHz |

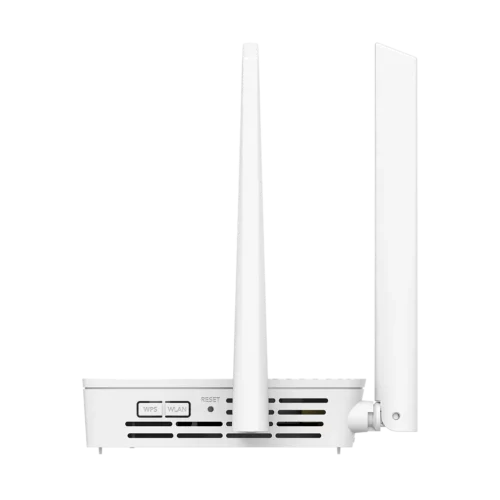

| WPS | True |
| Operation Modes | xPON Wi-Fi Router |
| Mesh | EasyMesh R2 |
| Mesh Backhaul | Wireless Backhaul |
| WAN Mode | DHCP |
| QoS | 4 Queues |
| DHCP | Address Reservation |
| IP Versions | IPv4/IPv6 |
| IPv6 Protocols | Dynamic (SLAAC/DHCPv6) |
| IPTV/VLAN | Bridge |
| TTL Customization | Extend |
| IGMP | IGMP Proxy |
| Forwarding | Port Forwarding |
| Firewall | SPI Firewall |
| DNS Options | Manual DNS |
| Online Detection | True |
| All Devices Management | MAC Filter |
| Content Management | Domain Filter |
| Local Control Method | Config Web Page |
| Remote Control Method | TR069/TR098/TR111/TR143/TR181 |
| Firmware Upgrade | Local Update |
| Reliability | Backup and Restore |
| Diagnostic Tools | Diagnosis |
| Languages | English |
