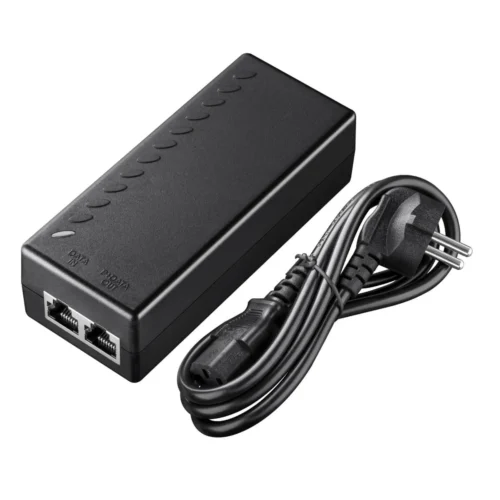

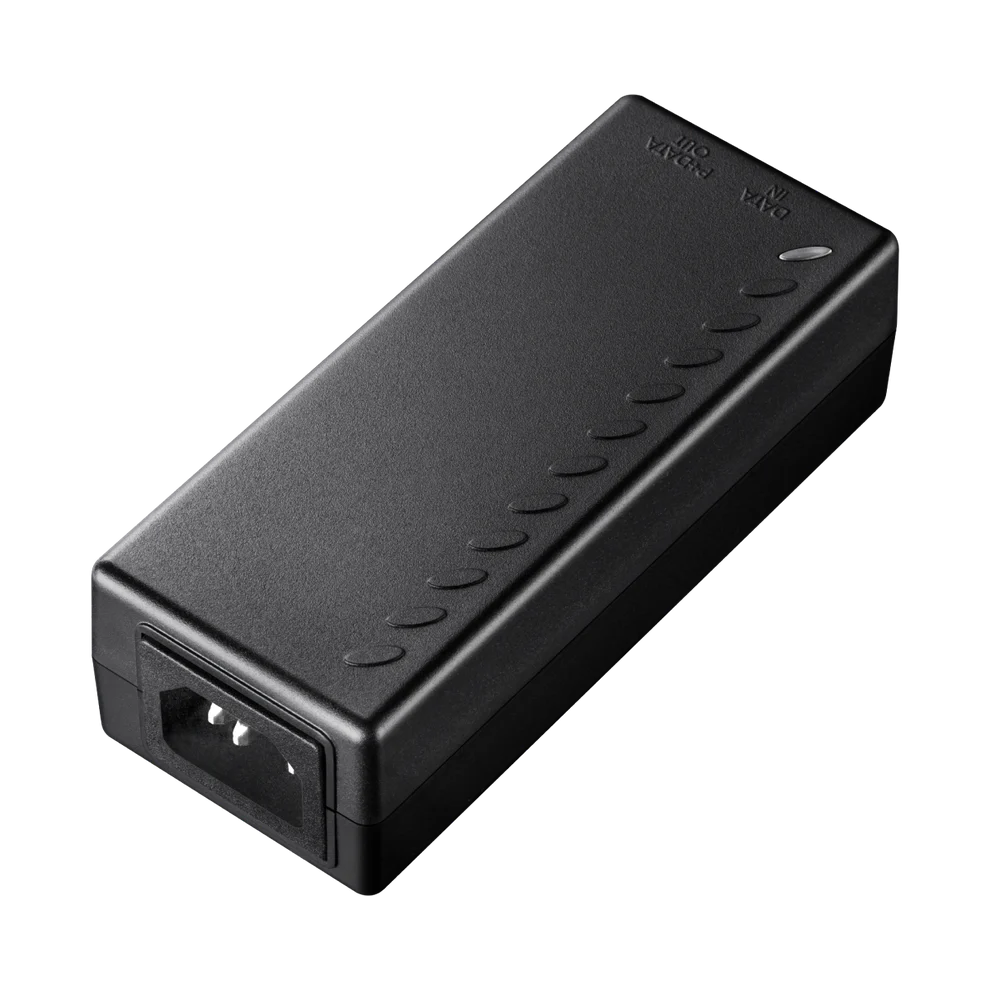

POE200 1.0
POE200 1.0 - Image 2
POE200 1.0 - Image 3
POE200 1.0 - Image 4
Cudy

POE200 1.0

● In stock

A PoE adapter adding power injecting up to 30W power the Ethernet cable to power up the PoE device.

  •  GbE In, GbE Out
  •  100m Transmission Distance
  •  802.3at/af, Max 30W, Mode A
  •  2-Pair 1/2- 3/6+
  •  Power LED
  •  Surge/ESD Protection
Add to Quote
Category: Tags: , ,

Description

Additional information

Device Type

Gigabit PoE, Injector, PoE Adapter
Link

https://www.cudy.com/en-il/products/poe200-1-0#features
802.3 Protocols

802.3i 10 Mbps over Twisted Pair
802.3u 100 Mbps over Twisted Pair
802.3ab 1 Gbps over Twisted Pair
802.3af PoE
802.3at PoE
Uplink Stream

1× GbE
Downlink Stream

1× GbE, 802.3at/af
Downlink Pin Assignment

Mode A
Transimission Distance

Cat. 5e or higher cable: 100 meters at Gigabit
Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
LED

Power
Power Interfaces

AC Inlet
Power Methods

AC
Power Input

100-240V~ 50/60Hz
Max Power Output

30W
Power Protection

Surge Protection
ESD Protection
Overvoltage Protection
Short-Circuit Protection
EMC

IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
Grounding Methods

Three-Prong Plug
Environment

Ambient Operating Temperature: -10~45 ℃ (14~113 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~95% non-condensing
Storage Humidity: 5%~95% non-condensing
Certifications

FCC, CE
Installation

Desktop
Wall-mount
Dimension

121×50×36 mm
4.76×1.97×1.42 inches
Casing Material

Plastic
