USW-Flex-Mini
● In stock
- (4) GbE ports
- (1) GbE PoE input port for power
- Optional powering with included 5V, 1A USB-C adapter (Adapter included with single unit purchases.)
Description
USW-Flex-Mini

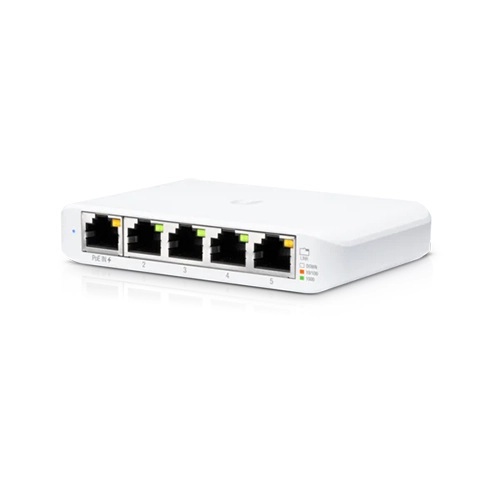

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter.

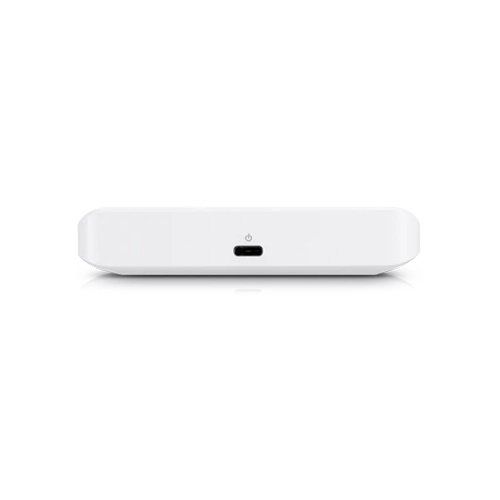

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Managed by UniFi Network Controller version: 5.12.5 or higher
Additional information
| Link | https://store.ui.com/us/en/collections/unifi-switching-utility-mini/products/usw-flex-mini |
|---|---|
| Dimensions | 107 x 70 x 21 mm (4.2 x 2.8 x 0.8") |
| Weight | 150 g (5.3 oz) |
| Enclosure material | Polycarbonate |
| Management interface | Ethernet In-Band |

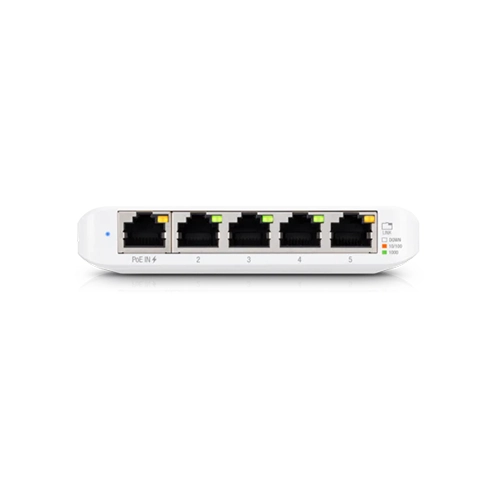

| Networking interface | (5) GbE RJ45 ports |
| Total non-blocking throughput | 5 Gbps |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.44 Mpps |
| Power method | (1) USB Type C, 5V (1) PoE/PoE+, 44—57V DC, 0.05—0.04A |
| Power supply | 5V, 1A power adapter* *Only single-unit packages include the 5V, 1A USB-C power adapter. |
| Supported voltage range | USB Type C: 4.7—5.3V DC PoE/PoE+: 44—57V DC |
| Max. power consumption | 2.5W |
| ESD/EMP protection | _± 16kV, contact_ ± 12kV |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Layer 2 features | Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| System | Status |
| Ethernet | Speed/link/activity |
| UniFi Network Version | 5.12.5 and later |
| Device Type | Switches |
