A 48-port, Layer 3 PoE switch.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

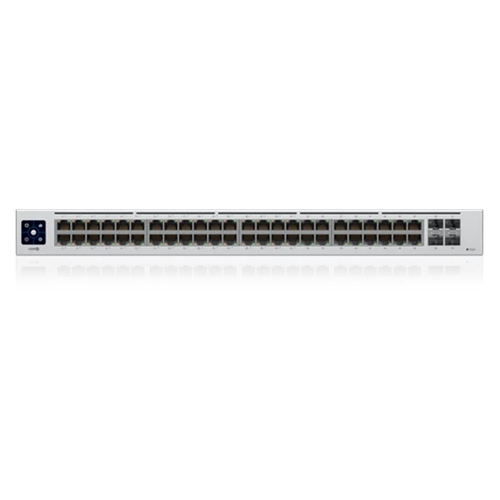

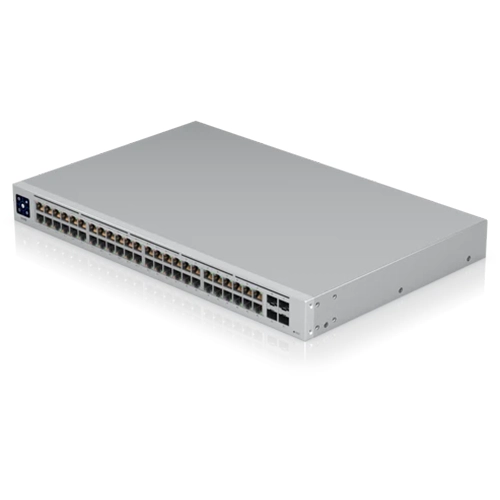

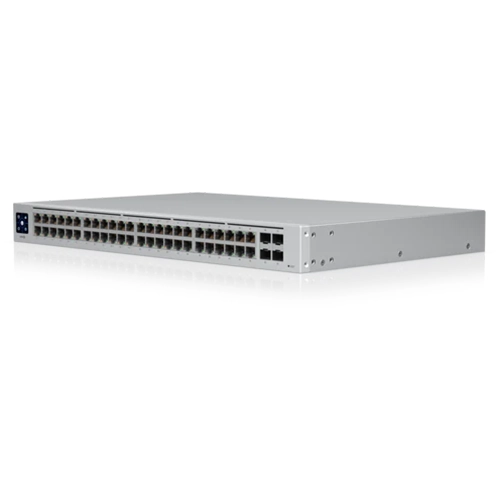

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports.
It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network.

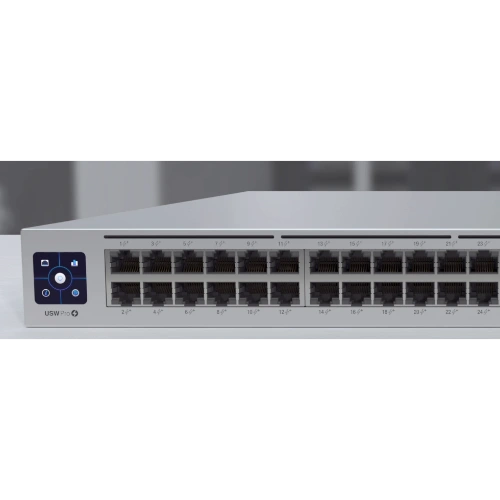

The USW-48-PoE features a 1.3″ touch LCM to provide status Managed and configured by the UniFi Network Controller with UniFi mobile app support,
the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port.
The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
| Device Type | POE Switch |
|---|---|
| Link | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Authentication type | ieee_802_1x, radius |
| DHCP features | DHCP server |
| Port Layout | 1 GbE RJ45: 48 (32 PoE+) (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 195W |
| Form Factor | Rack mount (1U) |
| Switching Capacity | 104 Gbps |
| Total Non-Blocking Throughput | 52 Gbps |
| Forwarding Rate | 77 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Access Lists | IPv4: 128 |
| PoE Ports | 32 PoE+ |
| Max. PoE Wattage per Port by PSE | PoE: : 15.4W |
| Max. Power Consumption | 45W (Excluding PoE Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Heat Dissipation | 153.5 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 4.5 kg (10 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 00593-21-08356 |
| Application Requirements | UniFi Network: Version 7.2.94 and later |
| Layer 2 Features | LACP Port Aggregation: ✓ |
