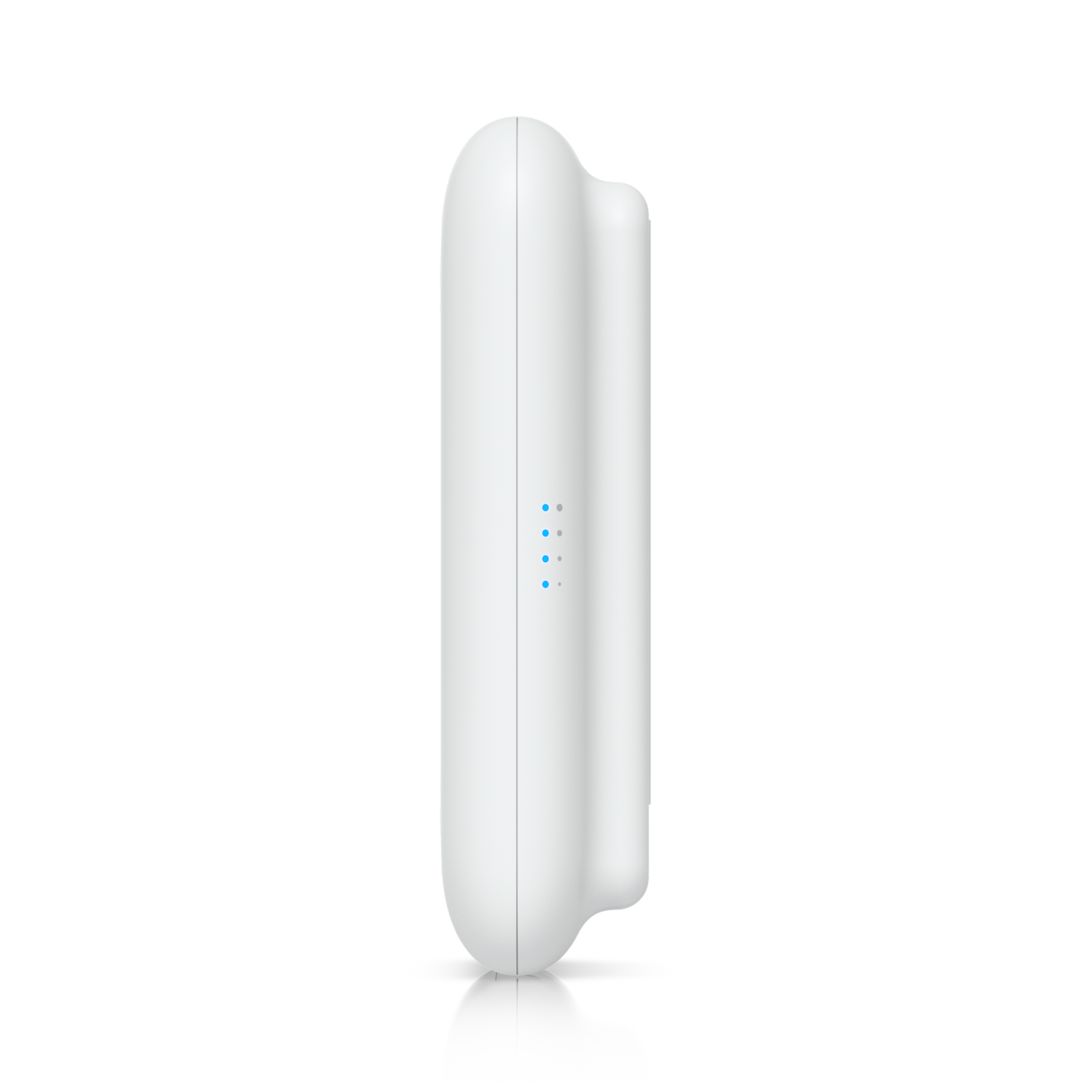

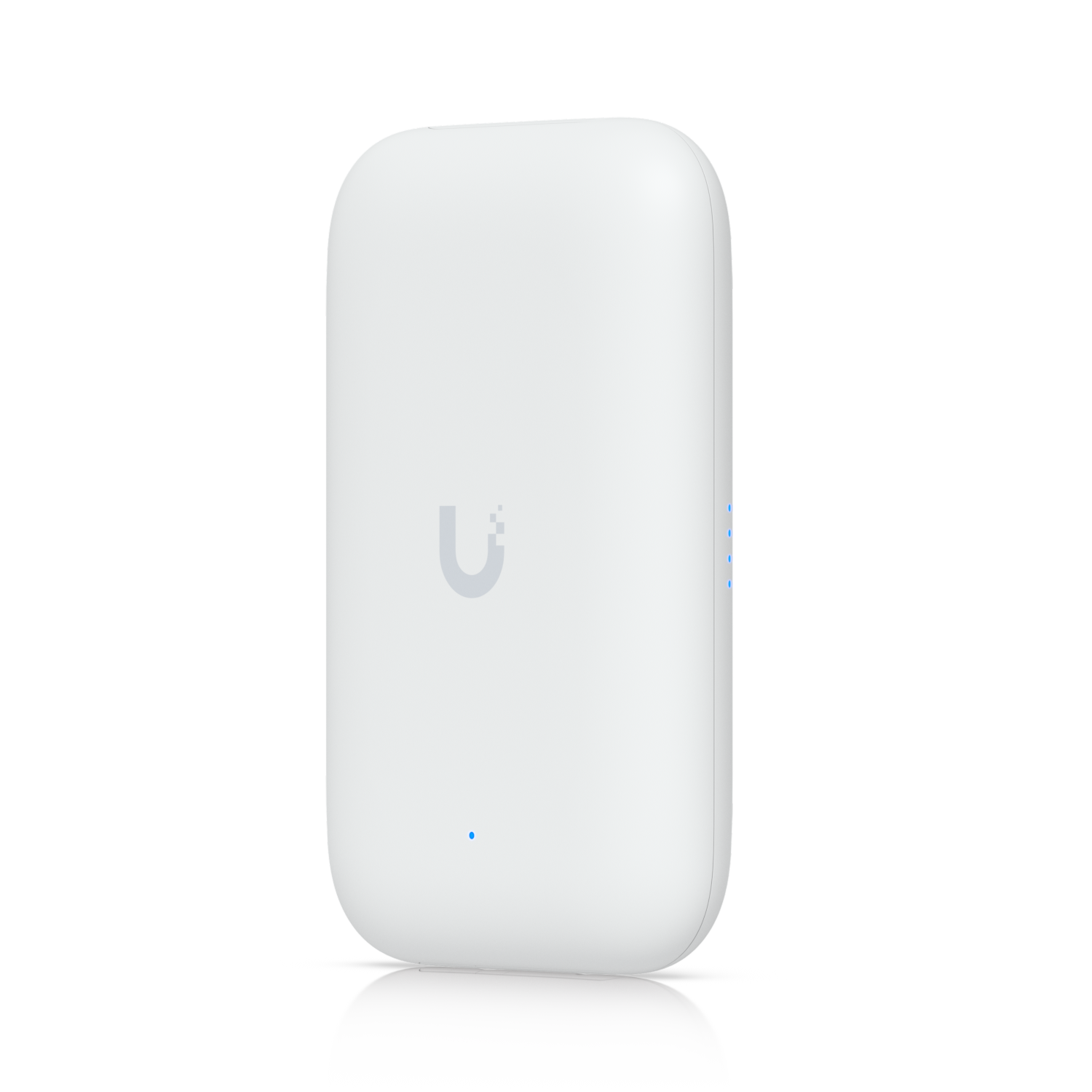

UK-Ultra Swiss Army Knife
● In stock
- WiFi 5
- 4 spatial streams
- 115 m² (1,250 ft²) coverage with internal antenna
- 200+ connected devices
- Powered using PoE
- GbE uplink

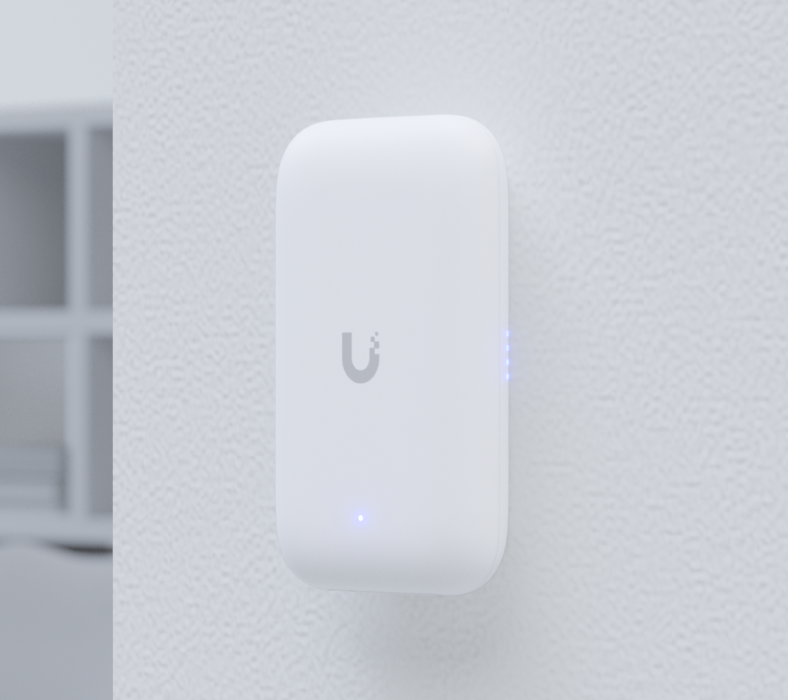

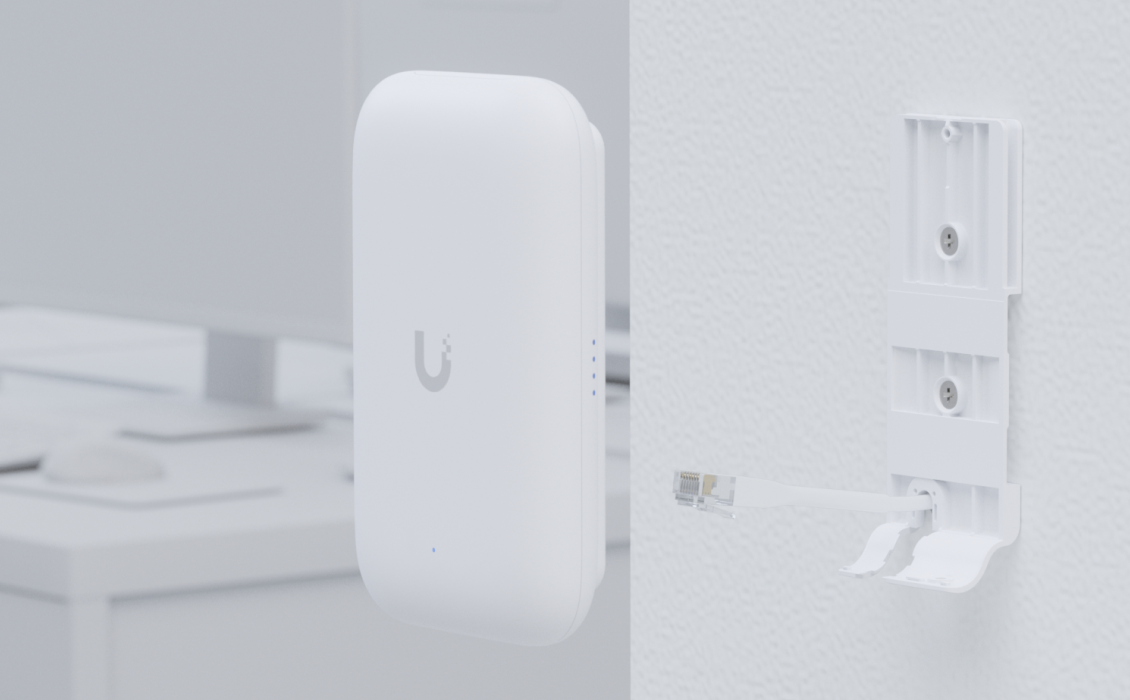

- Versatile wall, ceiling, and pole mounting
- (2) RP-SMA connectors for optional external antennas
- Weatherproof (outdoor exposed)
Description
Additional information
| Link | |
|---|---|
| Dimensions | 137 x 84 x 34 mm |
| Weight | 173 g (6.1 oz) |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Uplink | GbE |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| MIMO | 5 GHz: 2 x 2 (DL MU-MIMO) |
| Max. Data Rate | 5 GHz: 866.7 Mbps (BW80) |
| Antenna gain | 5 GHz: 6.1 dBi |
| Max. TX Power | 5 GHz: 20 dBm |
| Max. BSSIDs | 8 per Radio |
| Mounting | Ceiling, Wall, Pole, Table (With Accessory) |
| Supported Data Rates | 802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
| Max. Power Consumption | 8W |
| Supported Voltage Range | 44—57V DC |
| WiFi standards | WiFi 5 |
| Networking Interface | (1) GbE RJ45 port |
| Wind Loading | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Pole Mount Diameter | 1~2" (25–50 mm) |
| Antennas | (1) Internal antenna |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Polycarbonate, SGCC steel, plastic |
| Concurrent clients | 200+ |
| LEDs | (1) Power: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) |
| Device Type | Access Point, Indoor, Outdoor, Wireless Access Point |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency | US/CA: Worldwide: |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| UniFi Network | Version 7.5.187 and later |
