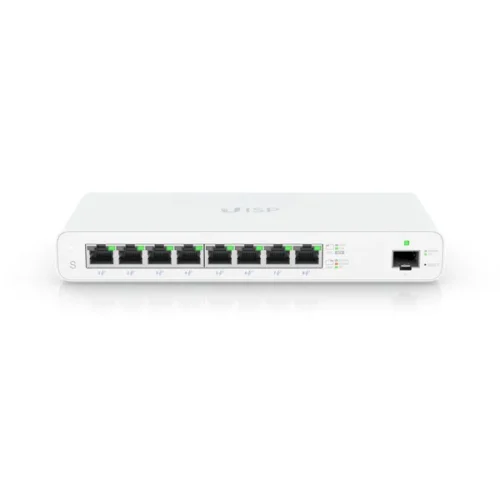

Ubiquiti
UISP-S
● In stock
Eight-port, Layer 2, Gigabit PoE switch designed for MicroPoP applications and building secure, high-performance networks.
- (8) GbE RJ45 ports with 27V passive PoE output
- (1) SFP port
- 110W (27V) total PoE availability (When powered with the included AC/DC adapter), 15W/port (2-pair) / 30W/port (4-pair)
- Port isolation, speed limiting, and DHCP snooping functionality
- Standalone management through local web interface (Available for switches updated to version 1.6.0 and later.) and UISP Application integration
Can be staged outdoors when enclosed in the UISP Box (sold separately).
Description
Gigabit PoE switch for MicroPoP applications
Ideal for wireless ISP (WISP) deployments, the UISP™ Switch is a fanless, Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option. The UISP Switch is a cost-effective solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Switch delivers substantial power to every radio in your service network. For larger deployments, pair it with the UISP Console to create a cohesive routing and switching hub. The UISP Switch is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices. The device is fanless and using thermal cooling for silent operation.
Bluetooth-powered setup via the UISP Mobile app is available. Thanks to UISP app you can centrally manage your networks and clients with ease. Simply organize your clients’ plans, setup billing and invoicing, and grow your customer base. UISP application allows viewing network topology, advanced data analytics, quickly set up devices and manage them on the go with a powerful mobile app. Managed with the UISP application: Version 1.4.0-beta.11 and later.
Summary

Aggregate Rating
no rating based on votes
Ubiquiri
Product Name UISP-S
Additional information
| Link | |
|---|---|
| Dimensions | 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1") |
| Weight | 610 g (1.3 lb) |
| Enclosure material | Polycarbonate |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 13.392 Mpps |
| Networking interface | (8) GbE RJ45 ports (1) 1G SFP port |
| Management interface | Ethernet In-band Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power supply | 27V DC, 4.4A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 8W (Excluding PoE output) |
| ESD/EMP protection | _± 15kV, contact_ ± 8kV |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Total available PoE | 110W |
| Max. passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| RJ45 data ports | PoE Speed/link/activity |
| SFP data ports | Link/activity |
| Management application | UISP: Version 1.4.0 and later |
| Device Type | POE Switch, Switches |
