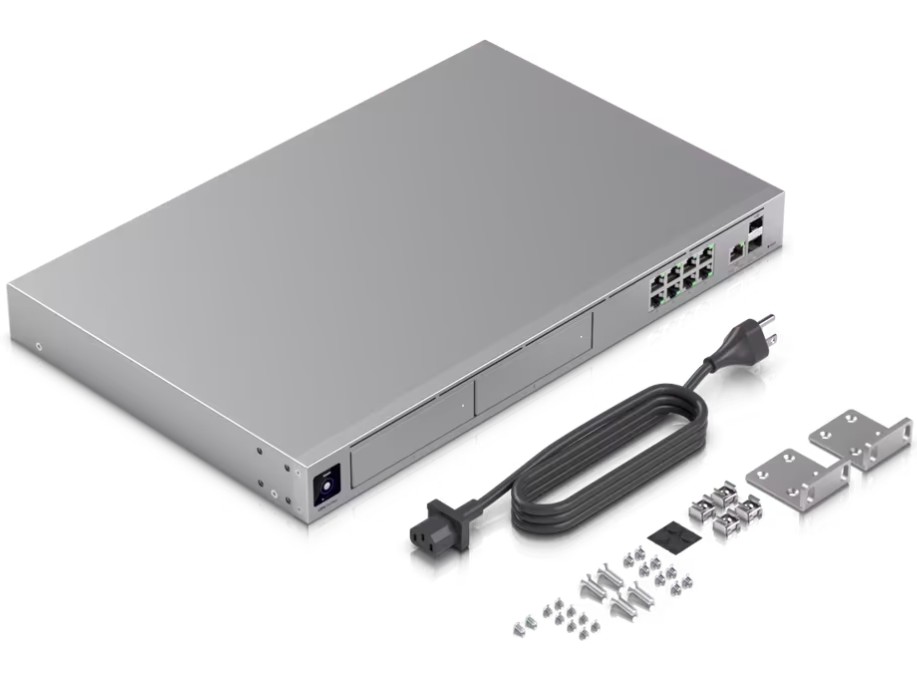

Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.
*Match with the official SFP+ Module or SFP+ to RJ45 Adapter for the best experience (see Recommended Accessories).
The Dream Machine Pro Max (UDM-Pro-Max) is a state-of-the-art network gateway that simplifies advanced network management and boosts security for your business operations. With its intuitive interface and robust performance, it is an ideal solution for businesses looking to streamline their network infrastructure and enhance online security.
Enhanced Network Stability and Speed: equipped with multiple high-speed connectivity options, the UDM-Pro-Max ensures your business operations stay running smoothly with minimal downtime. Its dual WAN capabilities provide failover protection, keeping your internet active even if one connection drops.
Advanced Security for Peace of Mind: keep your network safe from external threats with top-notch security features, including an application-aware firewall and signature-based threat detection. It also offers extensive content and ad filtering to maintain a clean and secure browsing environment.
Effortless Network Management: simplify your network administration with user-friendly tools that allow for easy setup and maintenance. Whether it’s managing Wi-Fi quality or handling various VPN setups, the UDM-Pro-Max provides all you need to manage your network efficiently.
Scalability for Growing Businesses: as your business expands, so do your network needs. The UDM-Pro-Max is designed to scale effortlessly with your growth, thanks to its robust performance and multiple connectivity options.
The UDM-Pro-Max features a sleek, professional design that fits well in any server room or office environment. Its robust construction ensures it can handle the rigors of continuous operation, making it a reliable part of your network infrastructure.
Ideal for:
| Device Type | Enterprise Router, Routers |
|---|---|
| Link | |
| Switch type | Managed |
| Switch layer | L3 |
| Multicast support | Yes |
| Quality of Service (QoS) support? | Yes |
| Firewall security? | Yes |
| DHCP features? | DHCP relay, DHCP server |
| IGMP proxy? | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type? | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity? | 1 |
| Ethernet LAN (RJ-45) ports? | 9 |
| SFP+ ports quantity? | 2 |
| Power connector? | DC-in jack |
| WAN connection? | Ethernet (RJ-45), sfp |
| SFP+ module slots quantity? | 2 |
| Processor manufacturer? | ARM |
| Flash memory? | 32000 MB |
| Processor family? | ARM Cortex |
| Internal memory? | 8000 MB |
| Control display unit? | Yes |
| Processor frequency? | 2000 MHz |
| Number of processors installed? | 1 |
| Processor model? | Cortex-A57 |
| SSD capacity? | 128 GB |
| Built-in processor? | Yes |
| Memory type? | DDR4-SDRAM |
| 10G support? | Yes |
| Ethernet LAN data rates? | 10, 100, 1000, 2500 Mbit/s |
| Port aggregation? | Yes |
| Policy-based routing? | Yes |
| VLAN support? | Yes |
| Virtual LAN features? | IP subnet?based VLAN |

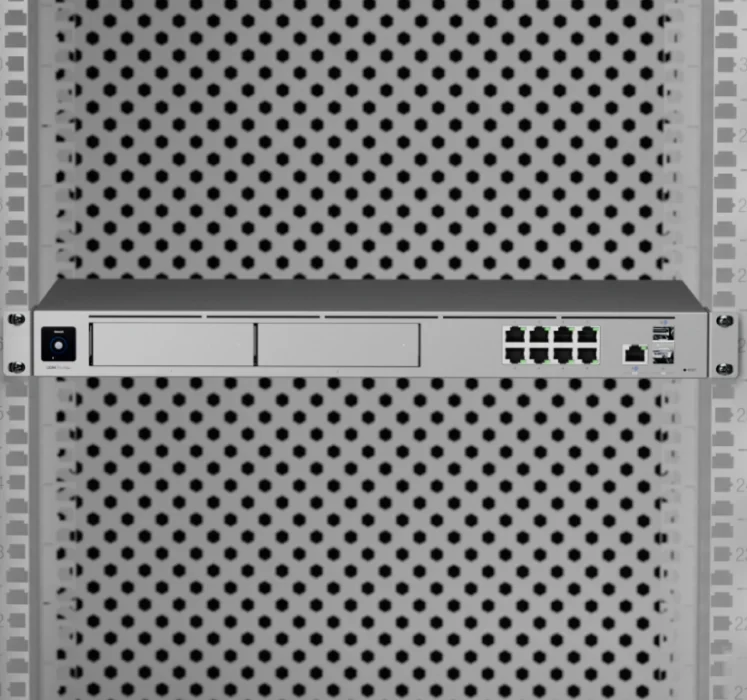

| Rack mounting? | Yes |
| Product colour? | Grey |
| Stackable? | No |
| Enclosure material? | Aluminium/SGCC |
| Form factor? | 1U |
| Rack capacity? | 1U |
| LED indicators? | Activity, Error, Link, Ready |
| Display type? | LCM |
| Housing material? | Aluminium, Galvanized steel |

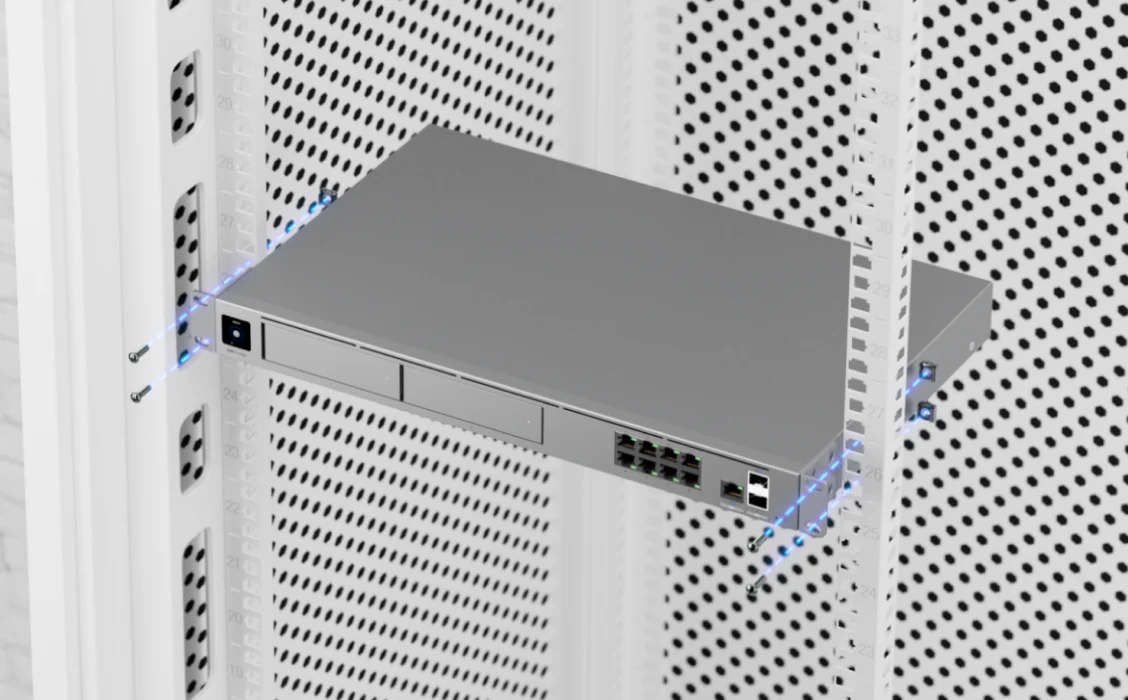

| Mounting type? | Rack mounting |
| Reset button? | Yes |
| Operating relative humidity (H-H)? | May-95 |
| Operating temperature (T-T)? | -50 |
| Sustainability compliance? | Yes |
| Certifications | CE, FCC, IC, Anatel: 06369-24-08356, SRRC |
| Rack mount kit? | Yes |
| Cables included? | AC |
| User guide? | Yes |
| Routing protocols? | BGP, OSPF |
| DHCP server? | Yes |
| Throughput? | 5 Gbit/s |
| UniFi Application Suite | Network Protect Access Talk Connect |
| Managed UniFi Devices | 200+ |
| Number of power supply units? | 1 |
| Input voltage? | 100 – 240 V |
| Redundant power supply (RPS) support? | Yes |
| Power over Ethernet (PoE)? | No |
| Power consumption (max)? | 60 |
| Input frequency? | 50/60 Hz |
| AC input voltage? | 100 – 240 V |
| DC input voltage? | 12 V |
| Power supply included? | Yes |
| Electrostatic Discharge (ESD) protection (contact)? | 8 kV |
| Heat dissipation? | 205 BTU/h |
| Power source? | AC/DC |
| Input current? | 02:00 AM |
| AC input frequency? | 50/60 Hz |
| Electrostatic Discharge (ESD) protection (air)? | 15 kV |
| Electromagnetic (EMP) protection? | Yes |
| Electromagnetic (EMP) protection (air)? | 15 kV |
