U7 Outdoor
● In stock
An integrated directional super antenna, and versatile mounting options.
Description
It operates in the 2.4 GHz band at a speed of 688 Mb/s and in the 5 GHz band at a speed of 4.3 Gb/s.

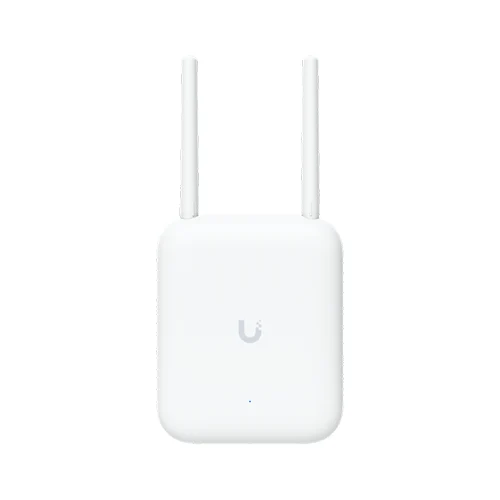

Two external antennas can be added to the unit using RP-SMA connectors on the top.

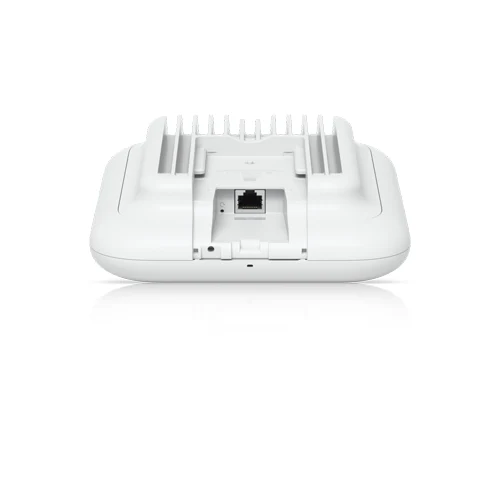

For network connection, a LAN port with a speed of up to 2.5 Gb/s is available. The access point is powered via PoE+.
Additional information
| Link | |
|---|---|
| Dimensions | 170 x 208 x 54.5 mm |
| Weight | 1.2 kg (2.6 lb) |
| Spatial Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Uplink | 2.5 GbE |
| Weatherproofing | IPX6 |
| Power Method | PoE+ |
| MIMO | 5 GHz: 2 x 2 (DL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW240) |
| Antenna gain | 5 GHz 2.4 GHz |
| Max. TX Power | 5 GHz: 26 dBm |
| Max. BSSIDs | 8 per Radio |

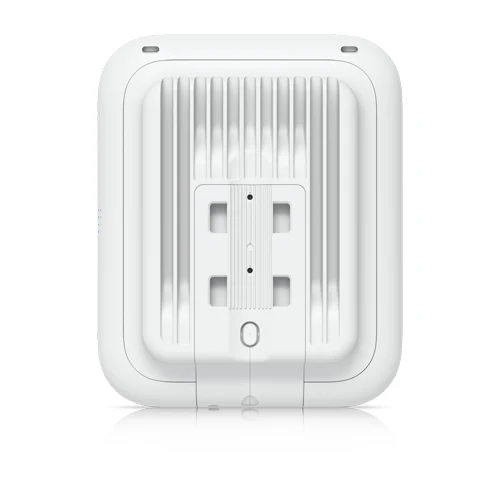

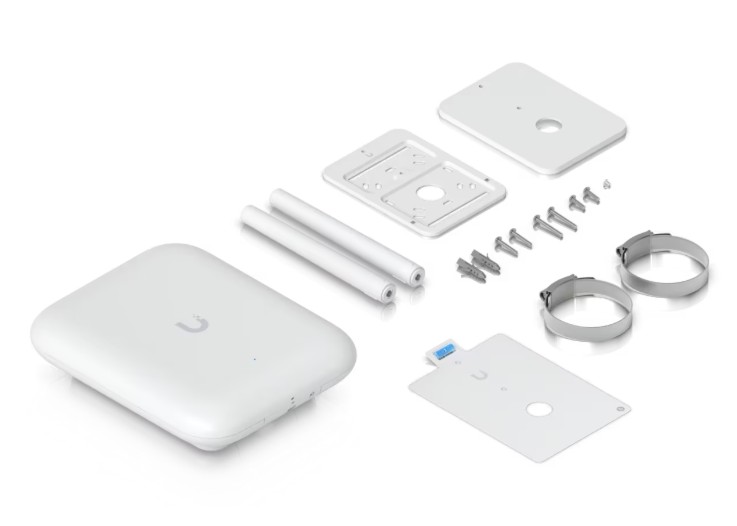

| Mounting | Wall, Pole |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Max. Power Consumption | 19W |
| Supported Voltage Range | 42.5—57V DC |
| WiFi standards | WiFi 7 |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.36" (25–60 mm) |
| Antennas | (1) Directional internal antenna |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, SGCC steel |
| Max. Client Count | 250+ |
| LEDs | (1) Power: White/Blue |
| Channel Bandwidth | HT 20/40, |
| Device Type | Access Point, Outdoor, Wi-Fi 7 |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency | US/CA: Worldwide: |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| UniFi Network | Version 8.2.93 and later |
| Antenna beamwidth | 5 GHz: 45° |
