U7-IW

Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
  • WiFi 7
  • 4 spatial streams
  • 115 m² (1,250 ft²) coverage
  • 200+ connected devices
  • Powered using PoE/PoE+. 2.5 GbE uplink
Add to Quote
Delivery & Return

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Ask a Question
U7-IW
Add to Quote






    Category: Tags: , , ,
    Brands: Ubiquiti

    Product Details

    Ubiquiti U7 In-Wall. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4300 Mbit/s. Security algorithms: PPSK. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W
    Access Point U7 In-Wall
    Summary
    product image
    Aggregate Rating
    no rating based on 0 votes
    Brand Name
    Ubiquiti
    Product Name
    Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet (PoE)
    Link

    https://eu.store.ui.com/eu/en/products/u7-iw
    Dimensions

    137 x 98.7 x 30.2 mm
    Weight

    400 g (14.1 oz)
    Spatial Streams

    4
    Coverage Area

    115 m² (1,250 ft²)
    Uplink

    2.5 GbE
    Power Method

    PoE
    PoE+ (Required for PoE output)
    MIMO

    5 GHz: 2 x 2 (DL/UL MU-MIMO)
    2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
    Max. Data Rate

    5 GHz: 4.3 Gbps (BW240)
    2.4 GHz: 688 Mbps (BW40)
    Antenna gain

    5 GHz: 8 dBi
    2.4 GHz: 4 dBi
    Max. TX Power

    5 GHzL 24 dBm
    2.4 GHz: 23 dBm
    Max. BSSIDs

    8 per Radio

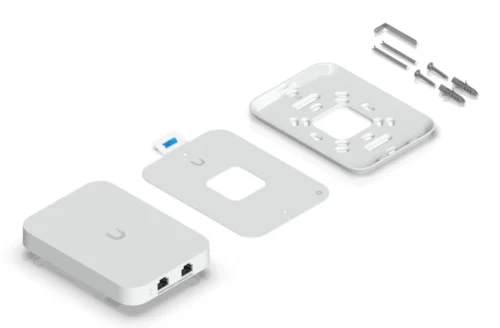

    Mounting

    Wall
    (Metal Wall Mount Included)
    Supported Data Rates

    802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
    802.11ax (WiFi 6)" 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
    802.11ac (WiFi 5)" 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
    802.11n" 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
    Max. Power Consumption

    13W (Excluding PoE output)
    Supported Voltage Range

    42.5—57V DC
    WiFi standards

    WiFi 7

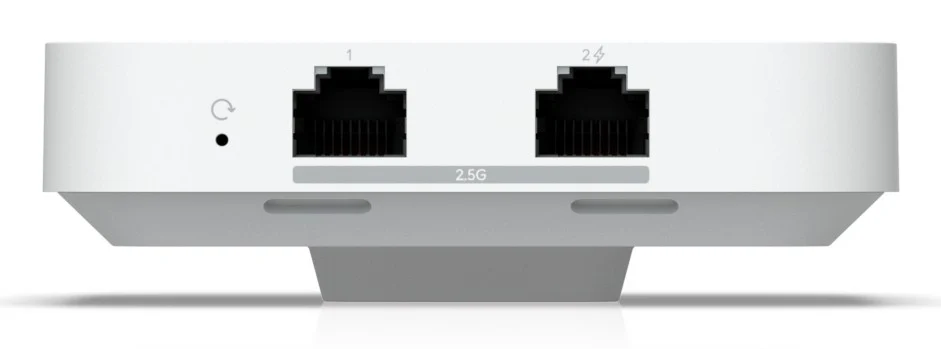

    Networking Interface

    (3) 2.5 GbE RJ45 ports
    Management

    Ethernet
    Built-In Switch

    (1) PoE+ input and
    (1) PoE output
    Enclosure Material

    Polycarbonate, aluminum alloy
    Mount Material

    Aluminum alloy
    LEDs

    White/Blue
    Max. Client Count

    200+
    UniFi Network

    Version 9.0.114 and later
    Mobile App

    iOS™ version 10.20.2 and later
    Android™ version 10.21.7 and later
    Channel Bandwidth

    HT 20/40,
    VHT 20/40/80/160,
    HE 20/40/80/160,
    EHT 20/40/80/160/240 (MHz)
    Certifications

    CE, FCC, IC
    Ambient Operating Temperature

    -30 to 40° C (-22 to 104° F)
    Ambient Operating Humidity

    5 to 95% noncondensing
