PBE-5AC-Gen2

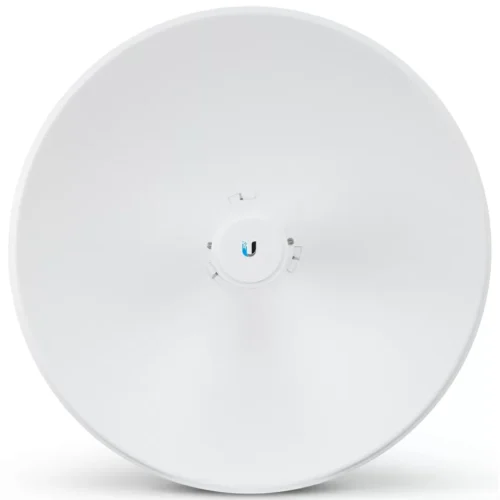

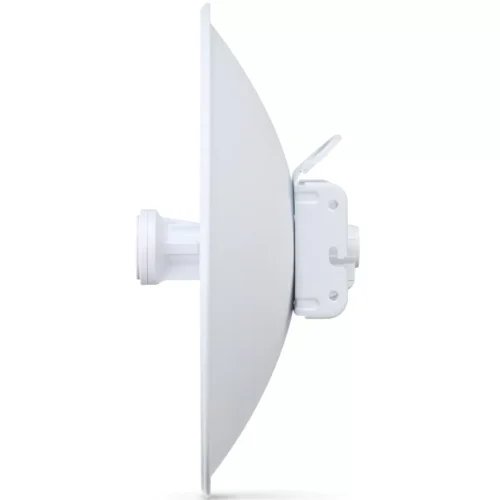

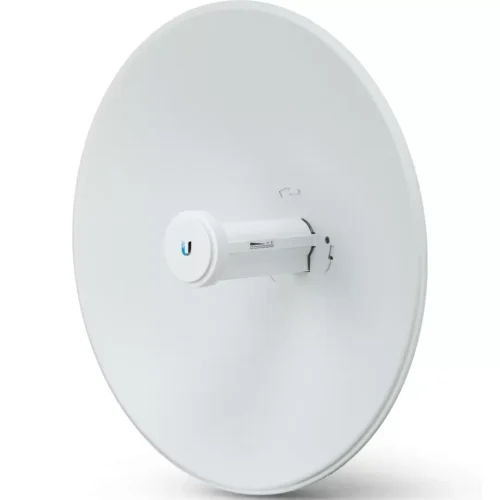

High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector.
  • 5 GHz, 15+ km link range
  • 450+ Mbps throughput
  • Improved mounting
  • Dedicated spectral analysis radio
  • Dedicated WiFi management radio
Add to Quote

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Category: Tag:
Brands: Ubiquiti

Product Details

High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector. Provides up to 450+ Mbps data throughput and and 15+ km link range.

The airMAX PowerBeam 5AC Gen2, bearing the model manufacture part number PBE-5AC-Gen2, is a cutting-edge wireless network bridge developed by Ubiquiti Networks. This device is engineered to deliver exceptional point-to-point (PtP) and point-to-multipoint (PtMP) connectivity, making it an integral component of modern high-speed wireless networks. Operating within the 5 GHz frequency band, the PowerBeam 5AC Gen2 utilizes Ubiquiti’s proprietary airMAX ac technology to provide superior throughput, network stability, and scalability.
The PowerBeam 5AC Gen2 is fully compatible with other airMAX ac devices. This includes a wide variety of Ubiquiti’s outdoor wireless access points, bridges, and customer premises equipment (CPE) that also utilize airMAX ac technology. Such compatibility ensures efficient point-to-point (PtP) and point-to-multipoint (PtMP) connections, enabling network operators to design flexible, high-capacity wireless networks that can be easily scaled or modified to meet evolving needs.Also, keep in mind that the PowerBeam 5AC can coexist in networks that also incorporate UniFi devices, especially when using separate network segments. However, it’s important to note that the PowerBeam operates using airOS, and UniFi devices are managed through the UniFi Controller. Direct interaction is limited due to the different technologies and purposes these series serve, with UniFi focusing on managed indoor and semi-outdoor Wi-Fi networking and airMAX targeting long-distance outdoor wireless connectivity.
Summary
product image
Aggregate Rating
1 based on 1 votes
Brand Name
Ubiquit
Product Name
PBE-5AC-Gen2
Dimensions

420 x 420 x 230 mm (16.5 x 16.5 x 9.1")

Weight

2.2 kg (4.9 lb)

Enclosure material

UV-stabilized plastic, powder-coated SPCC

Wind loading

380 N at 200 km/h (85.4 lbf at 125 mph)

Wind survivability

200 km/h (125 mph)

Mounting

Pole mount kit (Included)

Networking interface

(1) GbE RJ45 port

Power method

Passive PoE 2-pair (4, 5+; 7, 8 return)

Max. power consumption

8.5W

Supported voltage range

20—27V DC

Power supply

24V, 0.5A gigabit PoE adapter (Included)

ESD/EMP protection

Air/contact: ± 24 kV

LEDs

(1) Power, (1) LAN, (4) WLAN

Salt fog test

IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5

Vibration test

IEC 68-2-6

Temperature shock test

IEC 68-2-14

UV test

IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4

Wind-driven rain test

ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5

Ambient operating temperature

-40 to 70 C (-40 to 158 F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC, RoHS

Gain

25 dBi

Channel sizes

PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz

Operating Frequency (MHz)

Worldwide: 5150-5875 MHz USA U-NII-1: 5150-5250 MHz U-NII-2A: 5250-5350 MHz U-NII-2C: 5240-5725 MHz U-NII-3: 5725-5850 MHz

Management Radio (MHz)

Worldwide: 2412 – 2472 MHz US/CA: 2412 – 2462 MHz

Device Type

PTP
