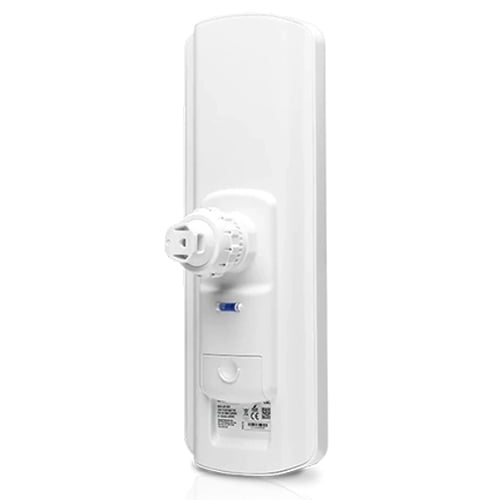

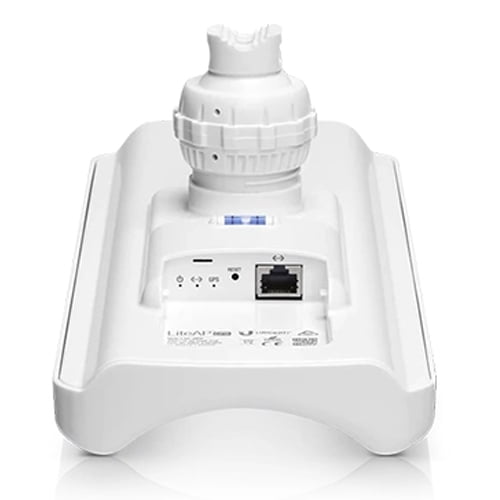

Introducing the airMAX® LiteAP™ AC, the latest high-performance access point with disruptive pricing from Ubiquiti Networks. Featuring an ultra-lightweight form factor, the LiteAP AC was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. Each of these models operates in the worldwide, license‑free 5 GHz frequency range with high‑performance speeds.
The LiteAP AC combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost‑effective value.
The LiteAP AC delivers up to 450+ Mbps real TCP/IP throughput and features an efficient form factor.
Quick Installation Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.
Versatile Mounting The ball-joint mount of the LiteAP AC provides adjustment flexibility for versatile mounting options.
Efficient Design The LiteAP AC features a lightweight antenna with an integrated radio in a sleek design.
Gigabit Ethernet The LiteAP AC delivers high throughput over its wired connection.
GPS Sync Support
Precise GPS frame synchronization enables co-located LAP-GPS devices to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.
Mobile App Support
The LAP-GPS integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
| Link | https://ca.store.ui.com/ca/en/pro/category/wireless-airmax-5ghz/products/lite-ap-gps |
|---|---|
| Dimensions | 361 x 124.6 x 71.3 mm (14.2 x 4.9 x 2.8") |
| Weight | 752 g (1.66 lb) |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 77 N at 200 km/h (17.3 lbf at 125 mph) |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported voltage range | 20—27V DC |
| Max. power consumption | 7.1W |
| Max. TX power | 25 dBm |
| Antenna gain | 17 dBi |
| ESD/EMP protection | Air/contact ± 24kV |
| Shock and vibrations | ETSI300-019-1.4 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency US/CA (MHz) | U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz |
| Operating Frequency Worldwide | 5150 – 5875 MHz |
| Management Radio (MHz) US/CA | 2412 – 2462 MHz |
| Worldwide | 2412 – 2462 MHz |
| Device Type | Access Point, Sector |
