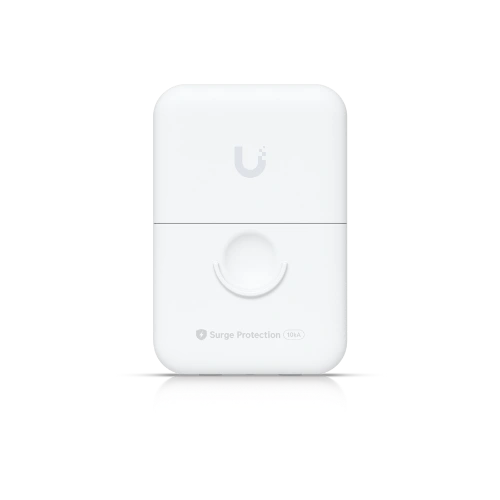

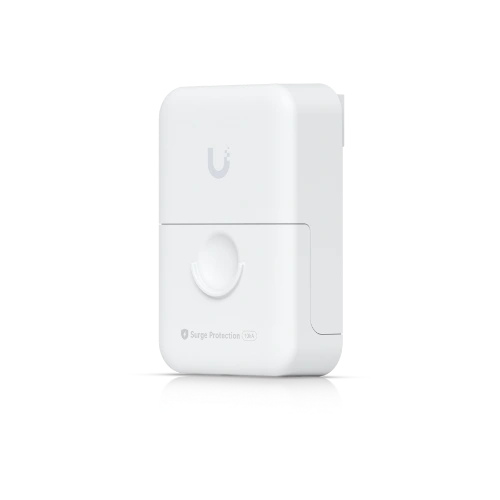

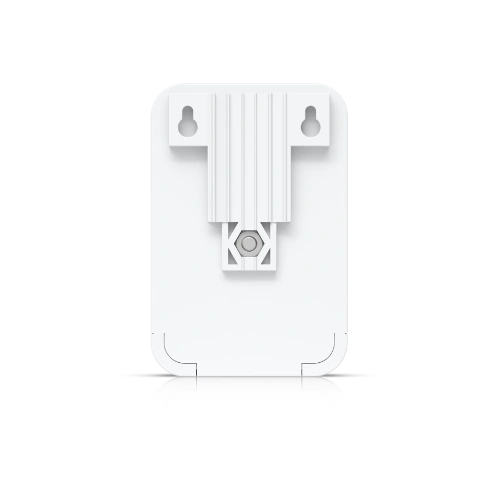

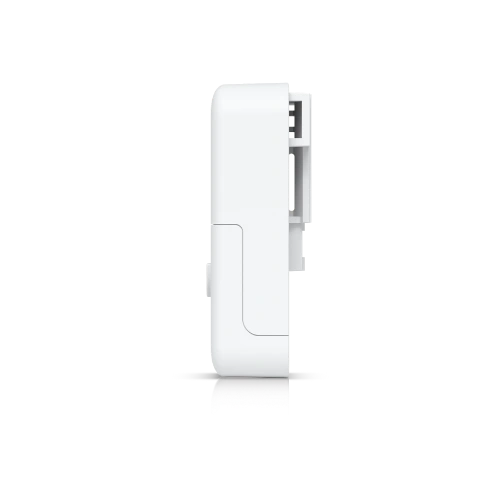

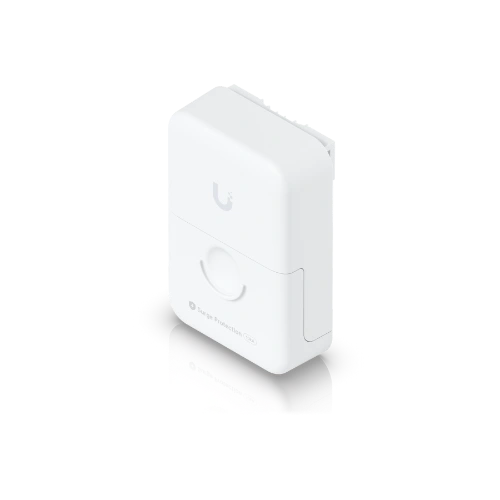

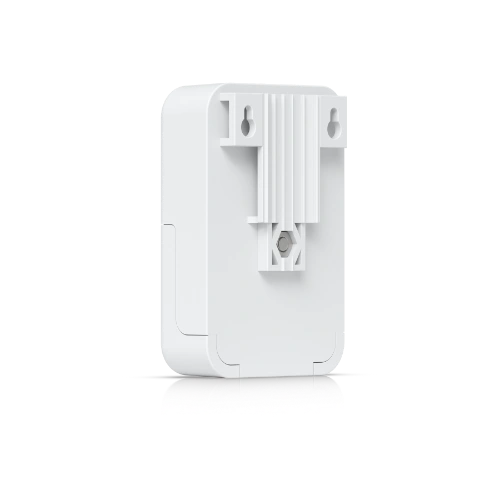

Ubiquiti
ETH-SP-G2
● In stock
The Instant PoE Adapter transforms almost any Ubiquiti PoE device into a fully compliant 24V, PoE-compatible product.
- ESD protection for outdoor high-speed networks.
- Protects outdoor Ethernet devices
- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Compatible with 2.5 GbE networks
Description
Protect your network with the Gen2 Ethernet Surge Protector. Safeguard devices from ESD and surges, ensuring reliable performance and longevity
Additional information
| Device Type | Ethernet, Outdoor |
|---|---|
| Link | |
| Dimensions | 91 × 61 × 32.5 mm |
| Weight | 80 g |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |

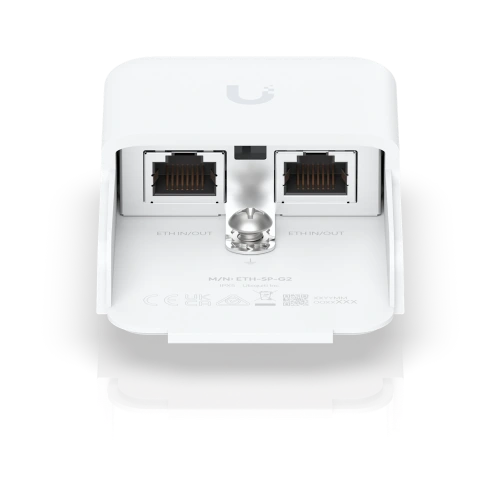

| Networking Interface Specifications | 2 × RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Insulation | Max. Resistance 1GΩ @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 2.5 Gbps |
| PoE Support | Yes |
| ESD Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -30 to 65° C |
| Ambient Operating Humidity | 10–90% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
