ES-8-150W
● In stock

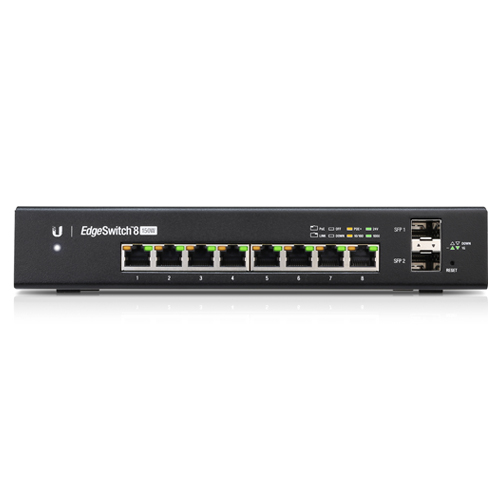

The Ubiquiti EdgeSwitch 8 Port 150W is a fully managed, fanless, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.
Gigabit switch with (8) RJ45 ports, (2) SFP ports, and a 150W power supply.
Description
UbiquiTi EdgeSwitch ES-8-150W Managed Switch
An advanced switch capable of powering external devices up to 150 watts, with 24 or 48 volt output voltage control on each port.
ES-8-150W has high-speed switching capabilities of up to 10 gigabits, with 8 gigabit ports. UbiquiTi EdgeSwitch ES-8-150W Managed Switch has automatic POE type detection and quiet operation without fans. The switch can be powered from a 220 volt power outlet or from a DC voltage between 42 and 56 volts. The EdgeSwitch ES-8-150W switch is also equipped with two optical connections up to 10 gigabits
Additional information
| Device Type | POE Switch |
|---|---|
| Link | |
| Dimensions | 204 x 43 x 235 mm |
| Environmental | Ambient Operating Temperature Internal AC/DC at 150W: -25 to 45° C, Internal AC/DC at 100W: -25 to 55° C, External DC: -25 to 60° C |
| Compliance | Certifications CE, FCC, IC, Anatel: 07833-18-08356 |
| Management interface | (1) RJ45 serial port, Ethernet In/Out-Band |
| Networking interface | (8) GbE RJ45 ports |
| PoE interface | (8) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 10 Gbps |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| Power method | 100-240V AC, universal input, 50/60 Hz, AC/DC integrated PSU |
| Power supply | AC/DC, internal, 150W DC |
| Max. power consumption | 20W (Excludes PoE output) |
| Total PoE available | 150W |
| Max. PoE wattage per portby PSE | PoE+: 34.2W |
| Voltage range PoE mode | PoE+: 50–57V |
| ESD/EMP protection | Air/contact: ± 24kV |
| LEDs | System: status |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | Internal AC/DC at 150W: -25 to 45° C (-13 to 113° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 07833-18-08356 |
| NDAA Compliant | Yes |
