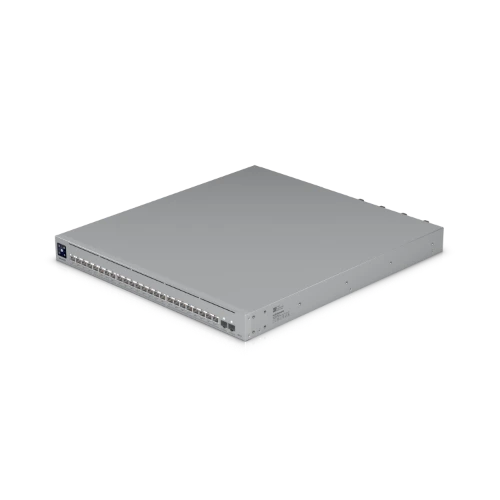

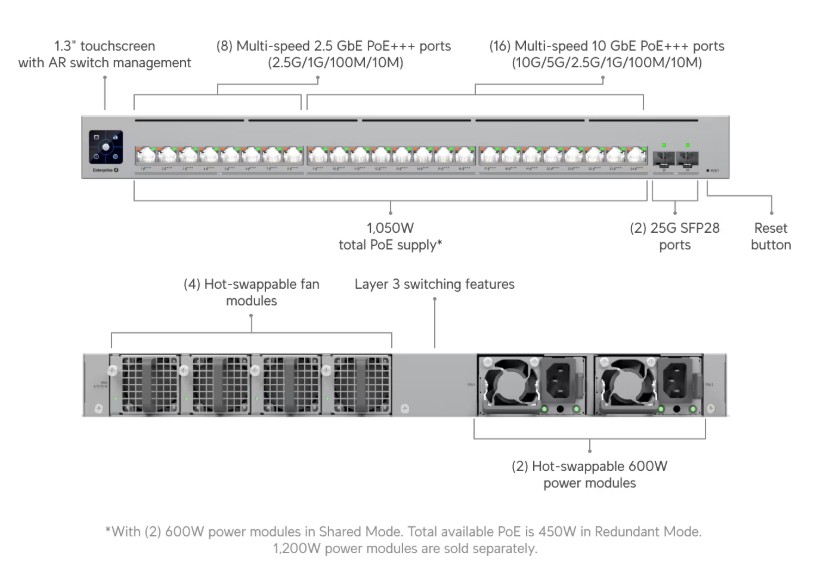

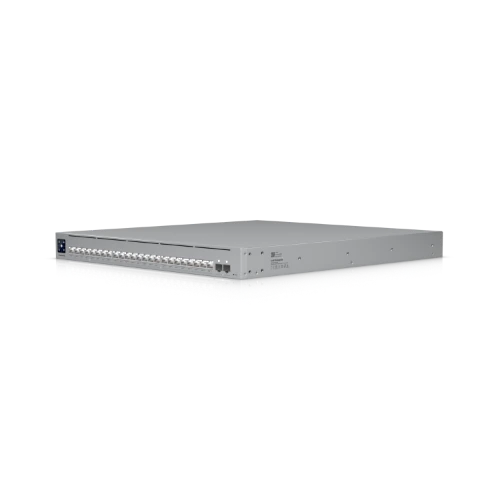

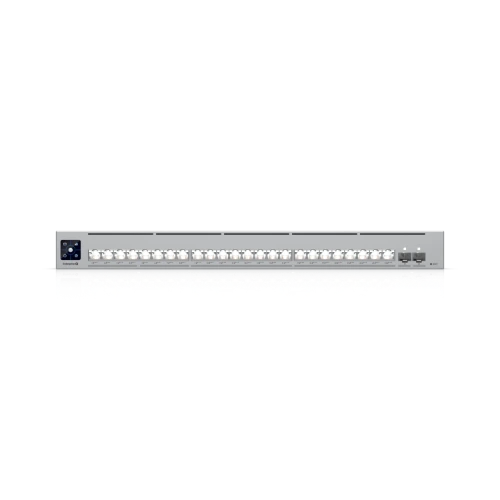

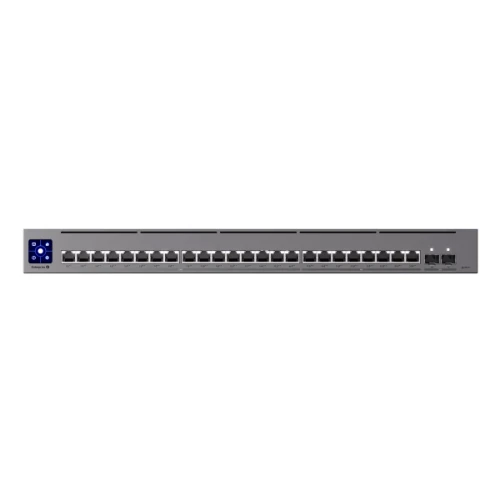

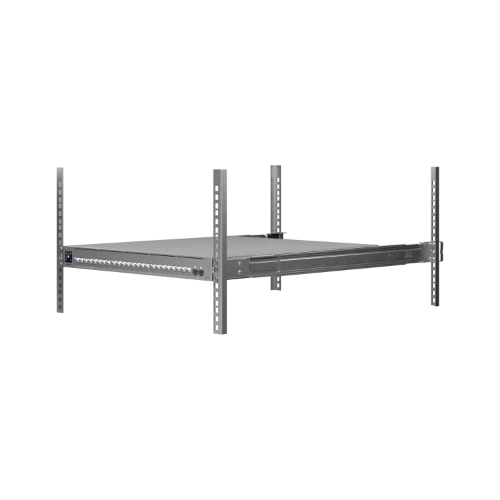

Introducing the ECS-24-PoE, a high-performance networking switch designed for demanding environments. With dimensions of 442 x 496 x 44 mm and a weight of 9.2 kg without mounting brackets, this robust device is housed in a durable SGCC steel enclosure. It supports 482.6 mm (19-inch) four-post racks with depths ranging from 650 to 1,000 mm, ensuring versatility in various installations. The networking interface includes an impressive configuration of (16) 10 GbE RJ45 ports, (8) 2.5 GbE RJ45 ports, and (2) 25G SFP28 ports, providing extensive connectivity options for modern networking needs.

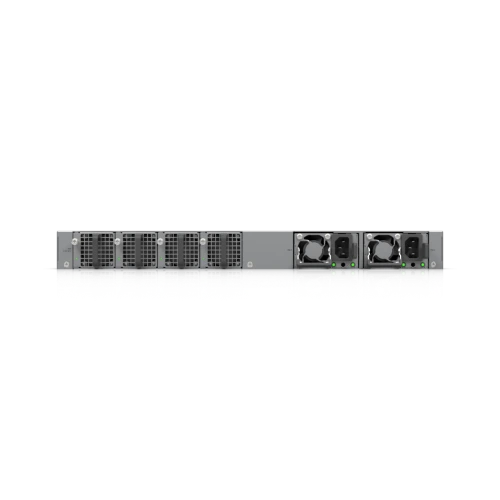

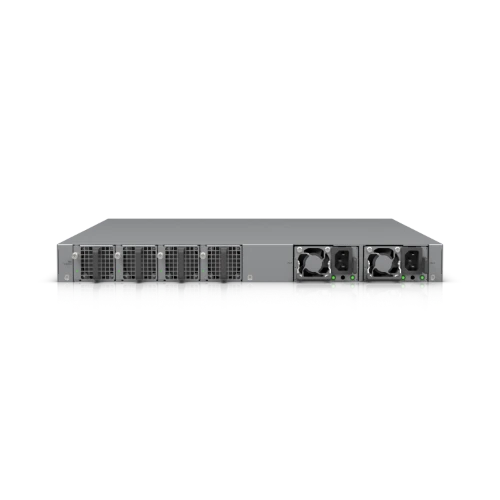

One of the standout features of the ECS-24-PoE is its unparalleled PoE capability. Equipped with (24) 90W PoE+++ ports, adhering to 802.3bt Type 4, this model delivers a total available PoE of 1,050W with the use of (2) 600W power modules. This capability allows it to power multiple high-demand devices simultaneously, making it ideal for environments with extensive IoT or surveillance systems. The total non-blocking throughput reaches an impressive 230 Gbps, while its switching capacity is rated at 460 Gbps, ensuring seamless data transfer and efficient performance.

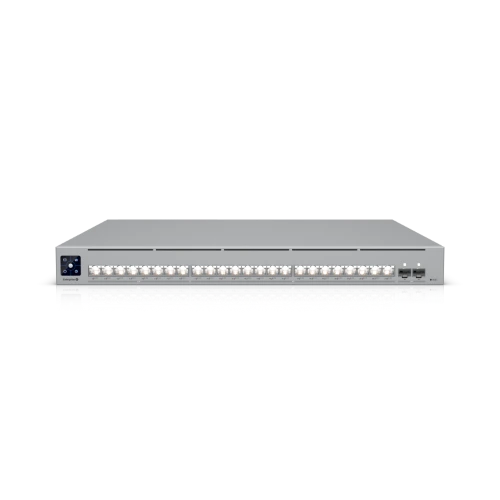

In addition to its robust hardware, the ECS-24-PoE integrates advanced Layer 2 and Layer 3 features, such as IGMP snooping, static routing, and DHCP relay, to enhance networking capabilities and security. The inclusion of Etherlighting™ further simplifies network management by offering intuitive diagnostics for Ethernet and SFP28 interfaces. Coupled with a user-friendly 1.3″ touchscreen display for system status and configuration, this switch represents a sophisticated solution for any enterprise-level networking requirement.
