5 GHz WiFi bridge with a 450+ Mbps real TCP/IP throughput rate and enhanced surge protection.
5 GHz, 15+ km link range
450+ Mbps throughput
Isolation antenna design rejects RF noise
Dedicated spectral analysis radio
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

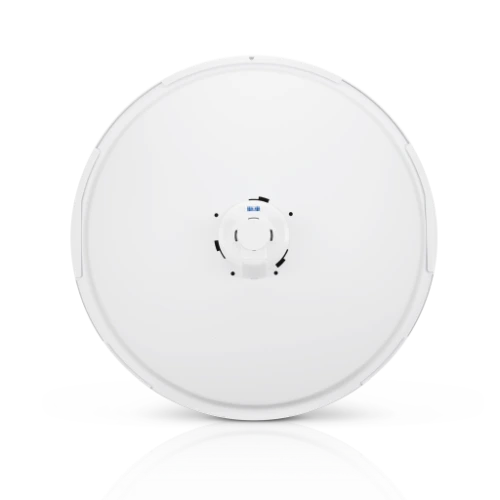

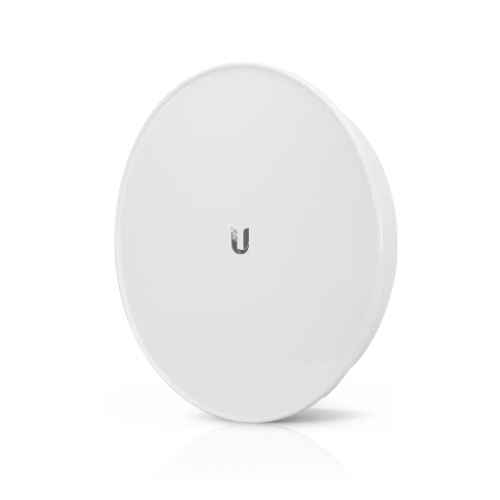

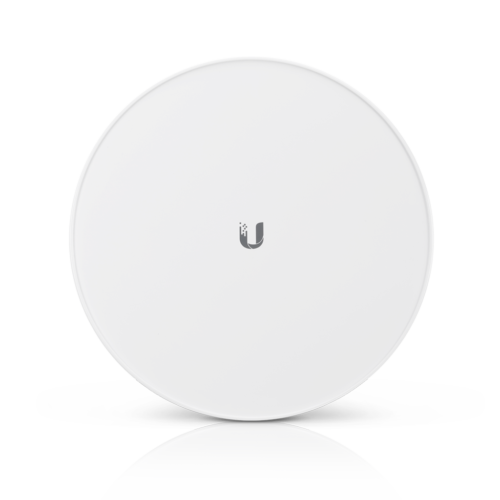

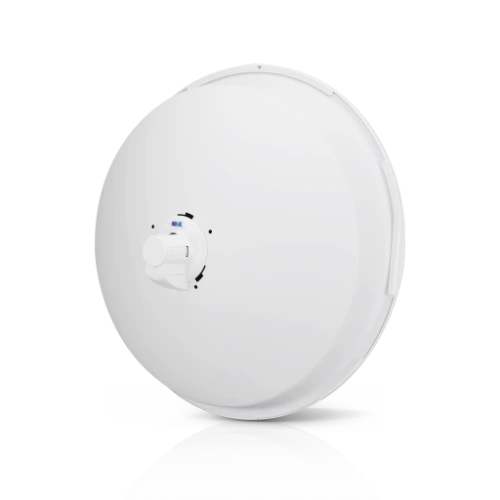

Explore the Ubiquiti PowerBeam AC ISO Gen2 – an advanced network bridge that provides a reliable and stable wireless connection for your network. Thanks to its robust design and advanced technology, this product will perform well even in demanding conditions.
With a maximum data rate of 450 Mbit/s and an antenna gain level of up to 25 dBi, the Ubiquiti PowerBeam AC ISO Gen2 guarantees efficient data transmission over a considerable distance. It handles both home and professional tasks without any problems.
Thanks to its operation in the frequency band from 5.150 to 5.850 GHz and the 16-QAM, 64-QAM, 256-QAM, BPSK and QPSK modulation used, the device ensures optimal performance and connection stability, even in densely populated areas with heavy network traffic.
The housing made of high-quality materials, in white color, not only protects the device from weather conditions, but also blends in perfectly with the environment, providing an aesthetically pleasing installation. PoE power supply and DC input voltage from 20 to 26V make installation and maintenance of the device simple and convenient.
| Device Type | 5 GHz, Bridge, Outdoor |
|---|---|
| Link | |
| Dimensions | 420 x 420 x 230 mm (16.5 x 16.5 x 9.1") |
| Weight | 2.2 kg (4.9 lbs) |
| Enclosure material | UV-stabilized plastic, powder-coated SPCC |
| Mounting | Pole mount kit (Included) |
| Wind loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Networking interface | (1) GbE RJ45 port |
| Compliance & Certifications | CE, FCC, IC, RoHS |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20—27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | Power, Ethernet, (4) signal strength |
| Salt fog test | IEC 68-2-11 (ASTM B117) |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) |
| Wind-driven rain test | ETS 300 019-1-4 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 – 95% noncondensing |
| System. Gain | 25 dBi |
| Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz |
| Management Radio (MHz) | Worldwide: 2412 – 2472 MHz |
| Operating Frequency (MHz) | Worldwide: 5150 – 5875 MHz |
