RG-NBS3100-24GT4SFP-P

Highlight Features
  • 28-Port gigabit Layer 2 managed PoE switch, 4 SFP uplink
  • Enterprise-class Quality Ensures High Performance
  • IP Camera Recognition, Unique Value for CCTV Network
  • Multiple Security Policies Protect Your Network
  • Lifetime management on Ruijie Cloud at anytime anywhere
Add to Quote

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Delivery & Return

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Category: Tag:
Brands: Ruijie

Product Details

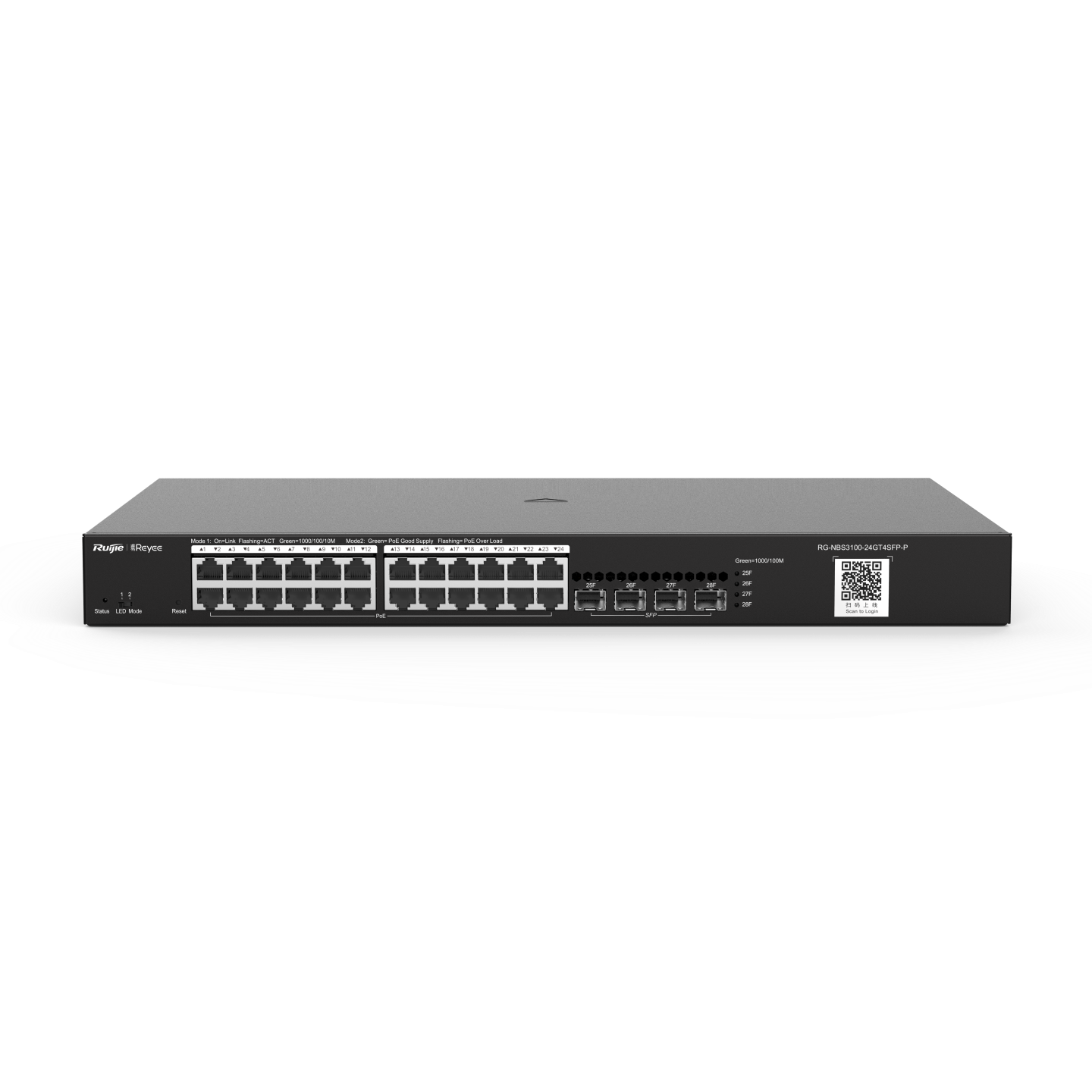

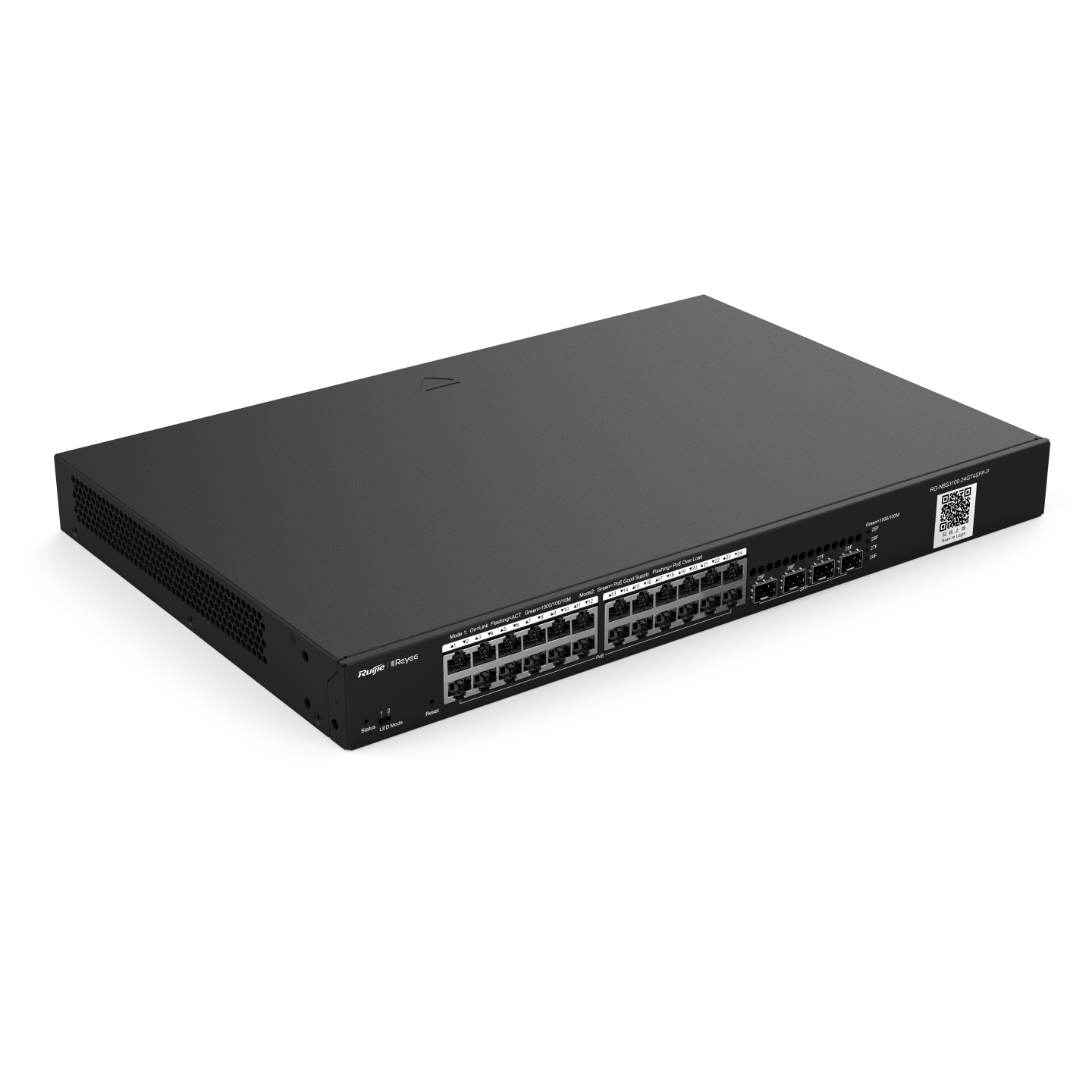

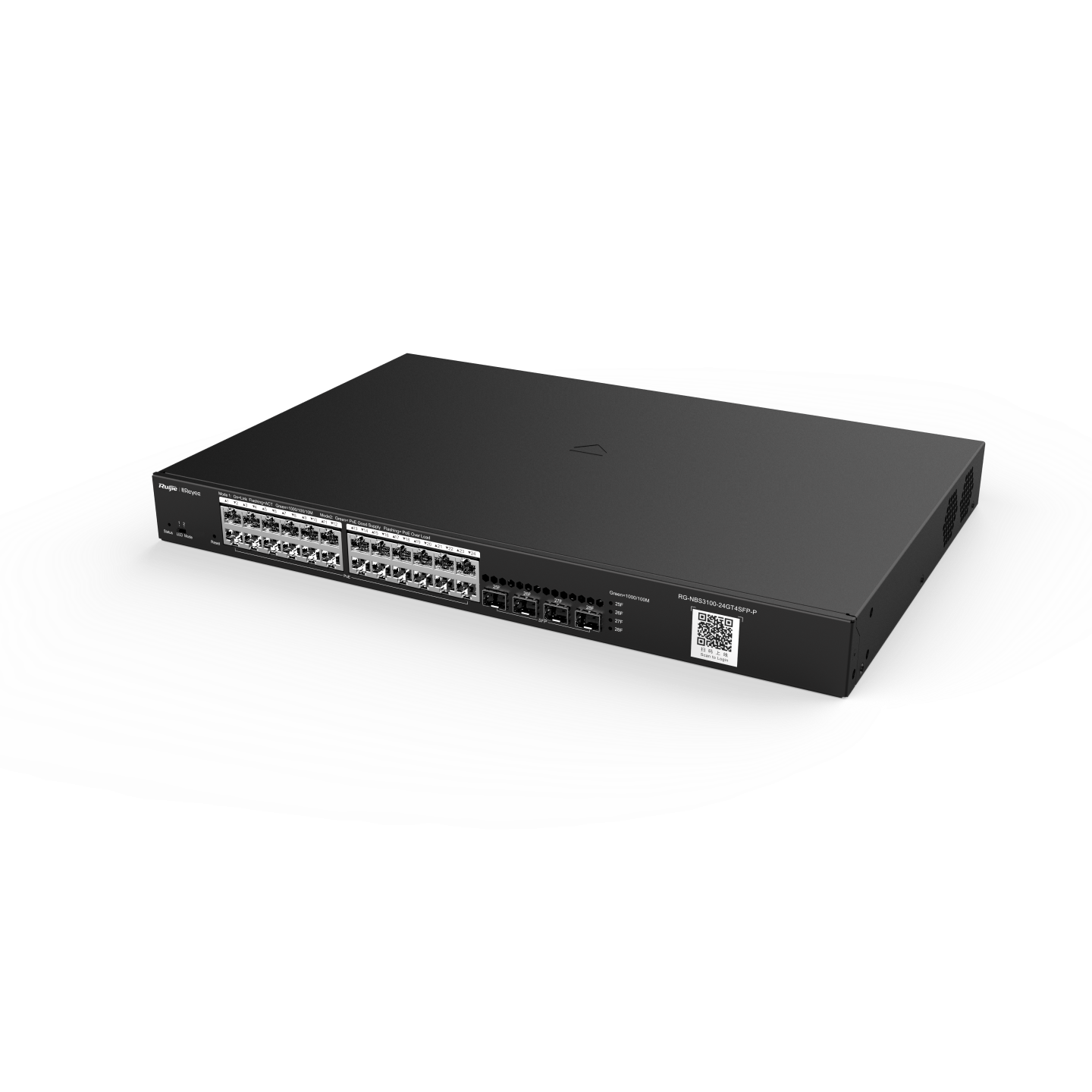

The RG-NBS3100-24GT4SFP-P is a 28-port Gigabit Layer 2 Cloud Managed PoE Switch, belonging to the Ruijie Switches series. It is a high-performance and cost-effective solution for medium to large-scale enterprise networks. With advanced management features and optimized power efficiency, this switch is designed to meet the growing demands of modern, data-intensive applications.

Device Type

Managed PoE Switch

Product Category

Layer 2

Series

Fixed 1G Up L2 Switch

Port Specifications

Total number of RJ45 ports: 24
Total number of optical ports: 4
Number of 1GE combo ports: No
Number of 1GE SFP ports: 4
Number of 10GE SFP+ ports: No
Number of 10/100BASE-T ports: No
Number of 10/100/1000BASE-T ports: 24
Number of 10/100/1000/2500BASE-T ports: No
Number of 100/1000/2.5G/5G/10GBASE-T ports: No

Power Supply and Consumption

Number of PoE Out ports: 24
Number of PoE/PoE+ Out ports: 24
Number of PoE/PoE+/PoE++ Out ports: No
PoE budget: 370 W
PoE power pins: 1–2 (+), 3–6 (-)

System Specifications

Forwarding rate: 41.66 Mpps
Switching capacity: 56 Gbps(bit/s)

Environment and Reliability

MTBF: 400,000 hours
Operating temperature: 0°C to +50°C (32°F to 122°F)
Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Surge protection (service port): ±6 kV for common mode
Surge protection (power connector): ±6 kV for both common mode and differential mode

Order Information

Device: RG-NBS3100-24GT4SFP-P
Mounting Bracket: 2
Foot pad: 4
Power supply: Power cord
Package Weight: 4.5 kg
Package Dimension (w x d x h): 573 mm x 401 mm x 145 mm
