UD29WB
● In stock
Features:
- Radio Connection: TwistPort Waveguide Connector
- Antenna Type: Parabolic Dish
- Materials: UV Resistant ABS plastic, Aluminum, Stainless Steel
- Environmental: IP65
Description

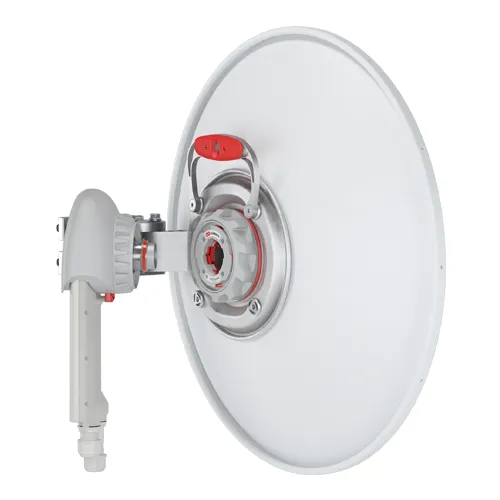

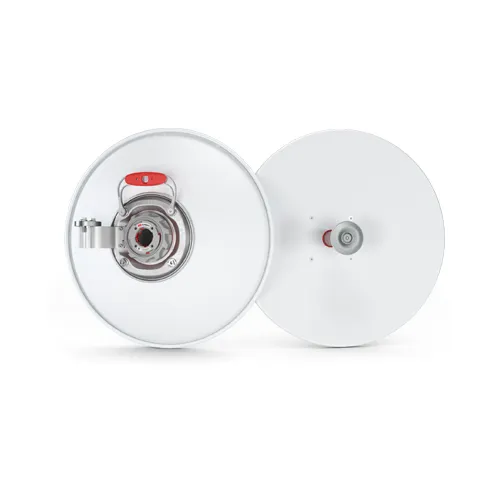

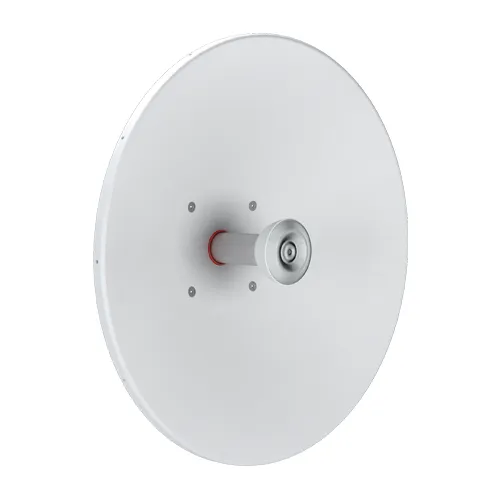

UltraDishTM 29 WB
6 GHz Dish Antenna with Wideband Performance for CPE applications
UltraDish™ 29 WB is designed for CPE application in 5 & 6 GHz bands with increased gain requirements.
Important Features
- Wideband performance with 2,225 MHz wideband covering 5 & 6 GHz unlicensed spectrum bands
- 29 dBi of nominal gain
- Excellent VSWR
- TwistPort™ waveguide connector. Connect directly to waveguide or use TPA with coaxial connectors
Industry leading design with innovative materials
- – Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments
- – All aluminum construction for low weight

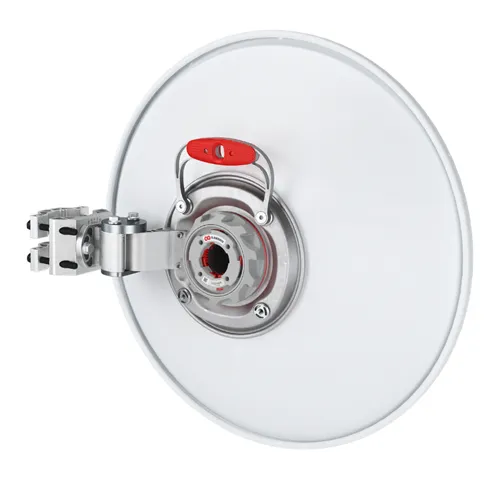

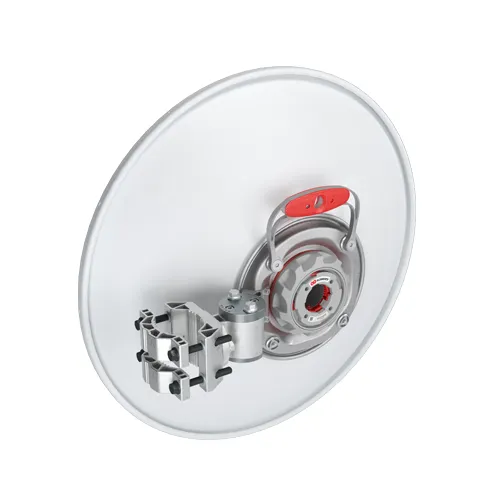

- – UBR mounting bracket with dual pole clamp for better grip
- – Stainless steel hardware with anti-seize coating
- – Industry leading ergonomics with integrated handle for easy deployment
- – Optional side strut for increased wind resistance

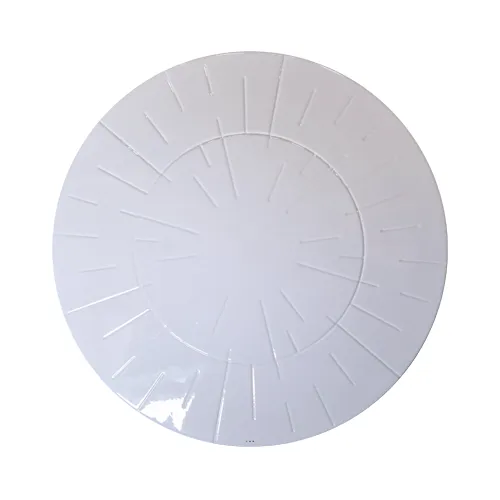

- – Optional radome
Additional information
| Link | |
|---|---|
| Device Type | Antennas, Dish, Wideband |
| Antenna Connection | TwistPortTM – Quick Locking Waveguide Port |
| Antenna Type | Parabolic Dish |
| Enviromental | IP65 |
| Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 371/42 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 3002/281 cm2 – Front/Side (465.3/43.5 in2) |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 4.2 kg / 9.2 lbs – single unit |
| Dimensions | Single unit retail box: |
| Frequency Range | 4900 – 7125 MHz Antenna on WG Port |
| Gain | 29 dBi |
| Azimuth Beam Width -3 dB/-6dB | H 5.5°, V 5.5° / H 7.6°, V 7.6° |
| Elevation Beam Width -3 dB/-6dB | H 5.5°, V 5.5° / H 7.6°, V 7.6° |
| Beam Efficiency | 59 %* |
| Front-to-Back Ratio | 40 dB |
| VSWR | Check our online SpecCheck for performance data |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
| ETSI | EN 302 217-4 class 1 |
