TPA-AMU
● In stock

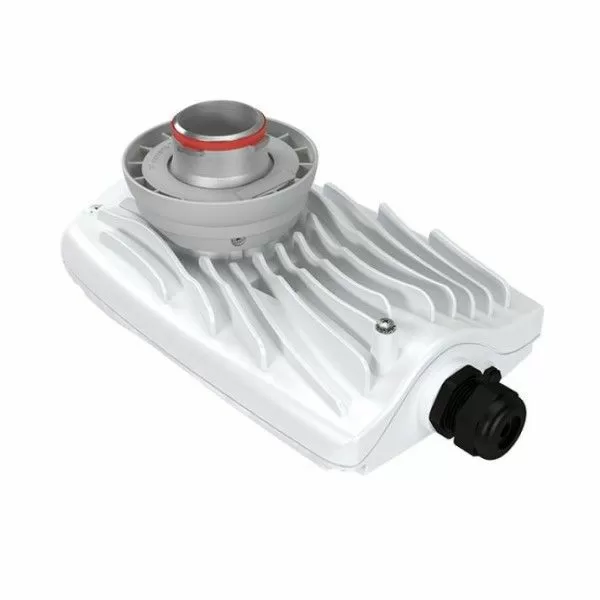

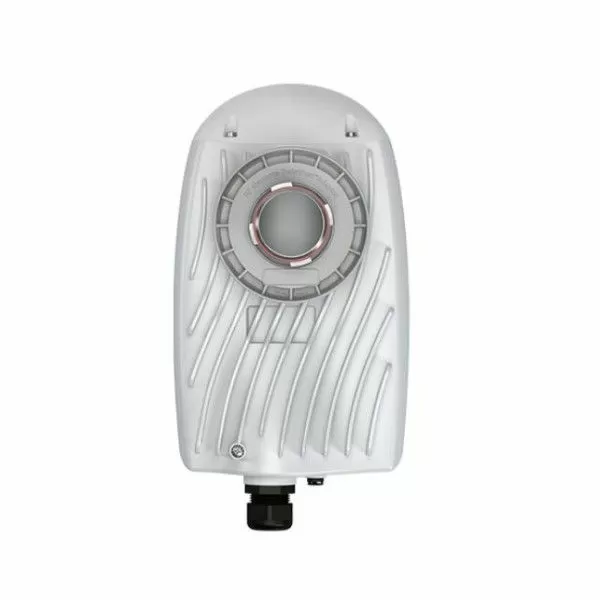

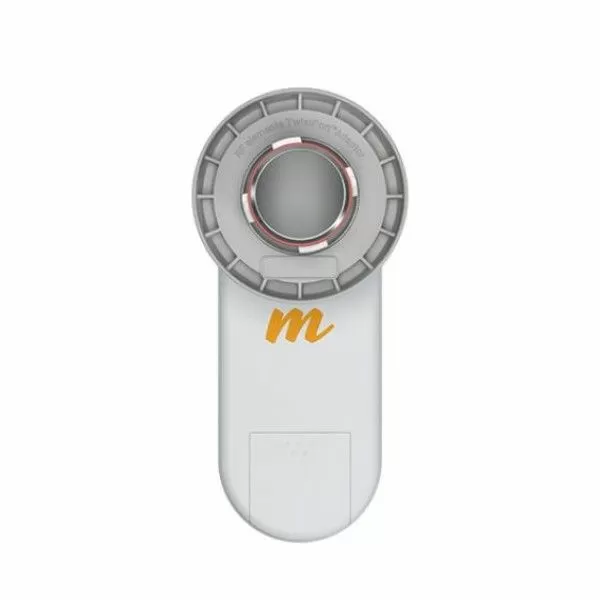

TwistPortTM Adaptor for Mimosa Waveguide
Integrates Mimosa® C5x, B5x and C6x radios into TwistPortTM eco-system.
Description
TwistPort™ Adaptor for Mimosa WaveGuide Radios integrates Mimosa® A5x and B5x radios into TwistPort™ system.
The TPA-AMU adapter is used to connect Mimosa® A5x and B5x radios with a Mimosa waveguide port to RF elements® proprietary TwistPort™ waveguide connector. Integration of the radio is smooth and easy. This allows radios to be used with any TwistPort™ antenna ever made and provides superior performance, noise immunity and network scalability.
TPA-AMU allows choosing between Dual Slant polarization setup or H+V polarization setup. TwistPort™ Adaptors cover an ultra-wideband spectrum of 5180-6400 MHz and perform with superb efficiency with very well managed VSWR across the spectrum.
Additional information
| Device Type | Adaptors, TwistPort Adaptor |
|---|---|
| Link | https://rfelements.com/products/tp-adaptor/twistport-adaptor-for-mimosa-wg/overview |
| Material | Aluminium, ABS Plastic, UV Plastic |
| Dimensions | 109 × 98 × 54 mm |
| Weight | 0.15 kg |
| Operating Temperature | -40 °C to 60 °C |
| Environment | Outdoor |
| Rated Wind Velocity | 160 km/h |
