Powerful 1U rackmount router with 13x Gigabit Ethernet ports, 60GB M.2 drive for Dude database
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

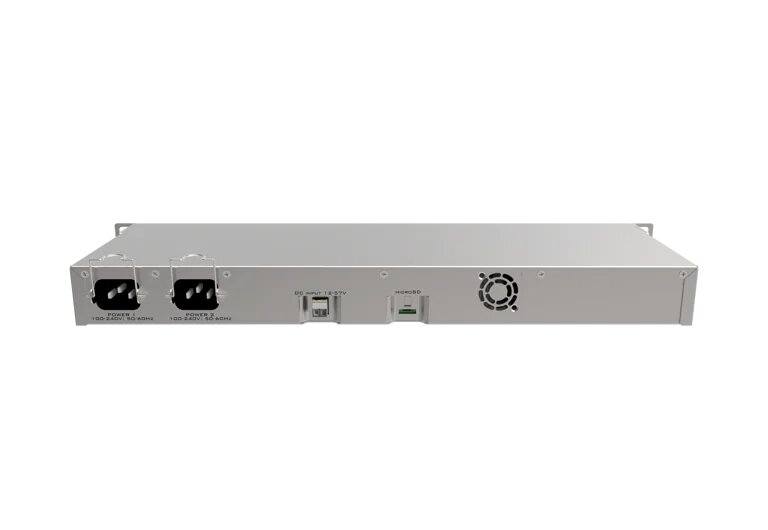

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
| Device Type | Ethernet Routers |
|---|---|
| Product code | RB1100Dx4 |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Switch chip model | RTL8367 |
| Dimensions | 443 x 148 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| Max power consumption | 33 W |
| Max power consumption without attachments | 25 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 20-57 V |
| Extended storage | 60GB M.2 SSD included |
| Memory Cards | 1 |
| Memory card type | microSD |
| SATA ports | 2x SATA3 |
| Number of M.2 slots | 2 |
| 10/100 Ethernet ports | 5 |
| Serial console port | RJ45 |
| 10/100/1000 Ethernet ports | 13 |
| Link | |
| Included parts | SATA cables , Rack ears , M.2 SSD 60GB ,2x IEC cords ,K-57 kit |
| Number of AC inputs | 2 |
| Certification | CE, EAC, ROHS IP20 |
