CRS320-8P-8B-4S+RM
● In stock
The first MikroTik high-power PoE++ switch – for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables – create a cleaner space with PoE++!
- Basic switching RJ-45 Ethernet ports quantity: 17 Console port: RJ-45
- 10G support
- Rack mounting
- AC Power supply included Power over Ethernet (PoE)
Description
CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn’t have to. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!
4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures – CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we’ve reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.
There are 17 Gigabit Ethernet ports: #1 – #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 – #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There’s also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip – the same one you’ve seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you’ve been looking for a way to simplify your cable management – this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices – mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power “802.3af/at/bt-compatible” Powered Devices, you must avoid specific grounding scenarios.

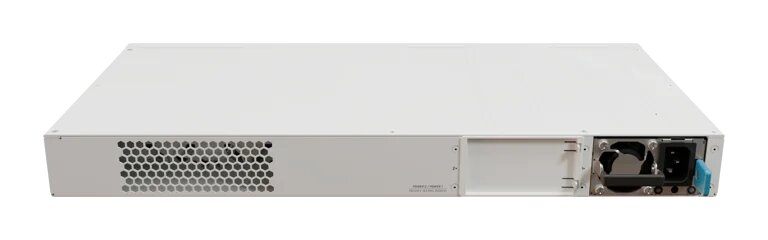

A hot-swappable PSU is included.
Additional information
| Device Type | Switches |
|---|---|
| Product code | CRS320-8P-8B-4S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX226S |
| RouterOS license | 5 |
| Operating System | RouterOS v7 / SwitchOS |
| Size of RAM | 256 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -10°C to 50°C |
| Number of AC inputs | 1 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 600W (1150W with additional PSU) |
| Max power consumption without attachments | 36 W |
| Cooling type | 3 fans |
| PoE out | 802.3af/at/bt |
| PoE-out ports | Ether1-Ether8 (af/at), Ether9-Ether16 (bt) |
| High voltage PoE-Out current limit | 560 (af/at) / 1667 (bt) mA |
| Max total out (A) | 17.82 A |
| Total output current | 17.82 |
| Total output power | 963 |
| Number of 1G Ethernet ports with PoE-out | 16 |
| 10/100/1000 Ethernet ports | 24 |
| SFP+ ports | 4 |
| Serial console port | RJ45 |
| Link | |
| Included parts | IEC cord , |
| Certification | CE, EAC, ROHS |
| IP | 20 |
