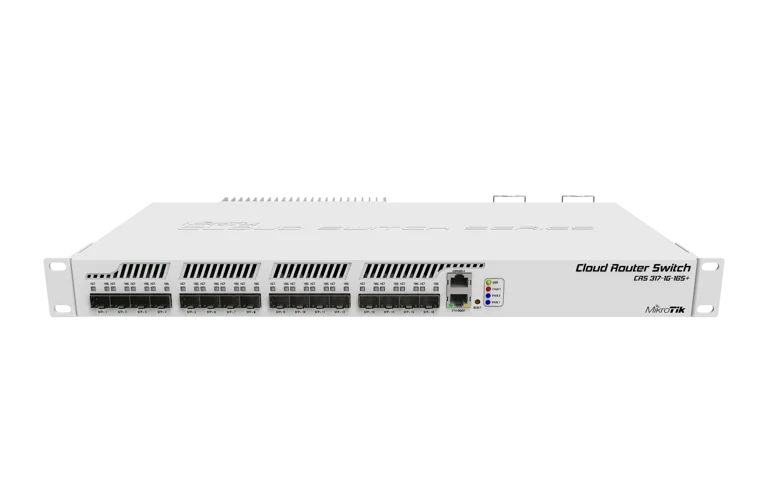

CRS317-1G-16S+RM
● In stock
Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies
Description
The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.
The unit has dual redundant power supplies and passive cooling case – for hot environments two redundant fans will automatically keep the system cool if needed.
Additional information
| Device Type | Switches |
|---|---|
| Product code | CRS317-1G-16S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX8216 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX226S |
| Dimensions | 443 x 224 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 1 GB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Number of AC inputs | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 44 W |
| Number of PSU slots | 2 |
| Cooling type | 2 fans |
| Total output current | 17.82 |
| 10/100/1000 Ethernet ports | 1 |
| SFP+ ports | 16 |
| Serial console port | RJ45 |
| Link | |
| Included parts | 2x IEC cord , |
| Certification | CE, EAC, ROHS |
