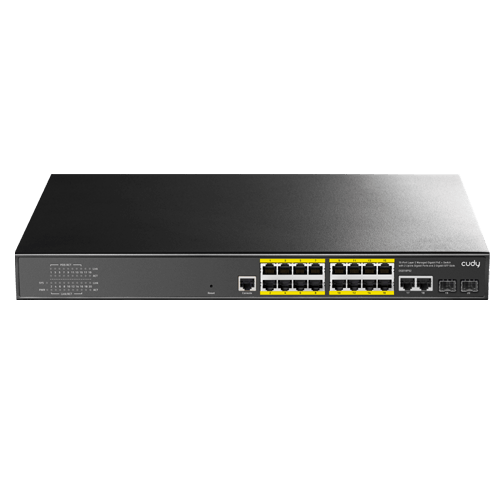

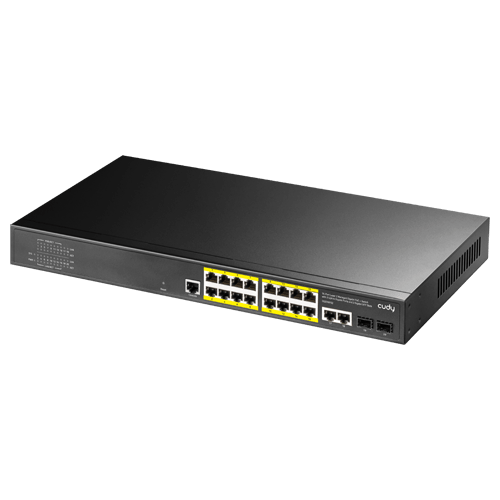

● 16 Gigabit POE Ports, 2 Uplink Gigabit Ports and 2 Gigabit SFP Slots 1 Console Port
● Compatible with IEEE802.3at and IEEE802.3af
● Ethernet port supports 10/100/1000M adaptive
● Fanless design, Natural Cooling,Compatible with 1U Rack Mount
● Support PoE Power Management, PoE watch dog
● Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
 |
 |
 |
| 16-Port PoE + 2-Port Uplink ● 10/100/1000Mbps Ethernet ports ● IEEE 802.3af / 802.3at compliant ● 200W total PoE power supply. ● Ideal for installing 16 PoE devices ● Auto-sensing technology delivers up to 30W of power to an 802.3at PoE + device with backwards compatibility for 802.3af PoE (15.4W) devices |
Flexibility of Uplink Ports ● 2 Uplink Gigabit Ports ● 2 Gigabit SFP Slots ● 1 Console Port |
Heat Dissipation ● Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. ● Built-in fan and venting holes help to dissipate heat quickly and ensure stable product operation |
 |
 |
 |
| High Quality TPS PoE chipset inside ● High Quality TPS PoE chipset inside ensure High performance and stable operation of the product. |
Auto-sensing technology ● The port power prioritization technology ensures the continuous power supply of the key nodes. |
Lightning protection ● Electrostatic standard: contact 6KV, air 8KV ● MTBF > 50000 hour |

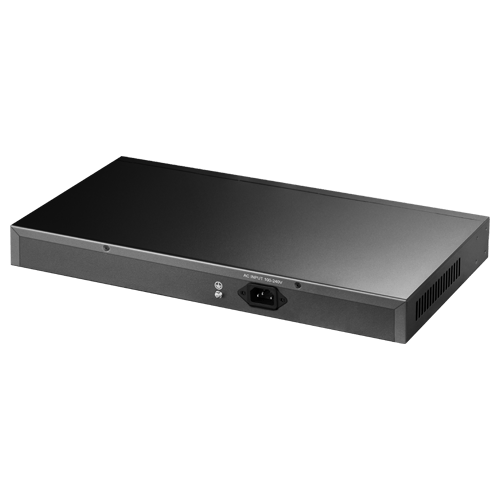

| AC INPUT | AC100-240V，50/60Hz |
|---|---|
| Ethernet Port | 16 x 10/100/1000Mbps PoE Port 2 x 1000Mbps SFP Port 2 x 1000Mbps Uplink Port 1 x RJ45 Console Port |
| Bandwidth | 40Gbps |
| Network Protocol | IEEE 802.3：Ethernet MAC Protocol IEEE 802.3i：10BASE-T Ethernet IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization (Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP |
| PoE protocol | IEEE802.3af （15.4 W） IEEE802.3at （30 W） |
| Network Media | 10BASE-T: Cat3、4、5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) |
| Fiber Medium | Multi-mode Fiber: 50/125、62.5/125、100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um |
| Indicator | PWR, SYS, PoE, Link/ACT |
| PWR（Power Indicator) | Lighting：Powered Un-Light：No Power |
| SYS（System Indicator) | Flashing: System Start-up Lighting: System Running |
| PoE | Lighting：PoE on Un-Light：PoE off |
| Link/ACT | Lighting: Link connection Flashing: Data transmission Un-Light: Link disconnect |
| Default | All ports can communicate with each other, PoE Watchdog is closed |
| Extend | 13-16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over software) |
| Reset | Short press restart, long press 5 seconds to restore factory Settings |
| Working Environment | Operating temperature: -20~50°C Storage temperature: -40~85°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~90%, No condensation Working height: Up to 10,000 feet Storage height: Up to 10,000 feet |
| Packet Forwarding rate | 29.76 Mpps |
| DDR SDRAM | 128MB |
| Flash Memory | 16MB |
| Packet Buffer Memory | 4M |
| MAC Address | 8K |
| Jumbo frame | 9.6Kbytes |
| VLANs | 4096 |
| Basic function | Support hardware watchdog, factory reset, system and port LED Support global information, statistical information, log information Support User management, alarm management, configuration management Support Port rate, duplex, flow control, maximum frame length configuration Support Port mirroring, port speed limit, port energy saving |
| PoE function | Support PoE time management Support PoE automatic monitoring / PoE Watchdog Support PoE port power configuration |
| VLAN | Support 4K VLAN Support 802.1Q VLAN，baesd on port VLAN Support Access、Trunk、Hybrid VLAN mode Support GVRP (VLAN registration protocol) Support MAC VLAN 、IP VLAN Support Voice VLAN |
| MAC | Support MAC address automatic learning and aging Support Static, dynamic, filtered address table |
| Security features | Password protection Support Restrict user access based on port number, IP address, MAC address Support HTTPS、SSH V1/V2 Support VLAN-IP-MAC-PORT binding Support ARP detection, IP source protection, DoS protection Support DHCP Snooping、DHCP Attack protection Support 802.1X Certification SupportAAA (Authentication, Authorization, Accounting), Support RADIUS protocal Support Port security, port isolation |
| Access control | Support L2(Layer 2)～L4(Layer 4) Packet filtering function Support Port mirroring, flow rate limiting, QoS remarking |
| QOS | Support 8 port queues Support Port priority, 802.1P priority, DSCP priority Support SP, WRR Priority scheduling algorithm |
| Spanning tree | Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP (IEEE 802.1s) protocal Support Multi-instance, Support Aggregate interface Support BPDU protection |
| Multicast | Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Support Layer 2 multicast fast leave mechanism, querier Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 Layer 3 multicast |
| Storm suppression | Support multicast suppression Support broadcast storm suppression Support unknown unicast suppression |
| Ring protection | Support Ring protection |
| Link Aggregation | Support Static Aggregation Support LACP Dynamic Aggregation Support based on IP, MAC, mixed load-balancing modes Maximum support 8 aggregation groups (8 ports per aggregation group) |
| IPv6 | Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet Support IPv6 SSH Support IPv6 HTTP 、IPv6 HTTPS |
| Management and Maintenance | Support WEB Management (HTTP、HTTPS) Support CLI (Telnet, SSH V1/V2, Local serial port) Support SNMP V1/V2/V3 Support RMON V2 Support LLDP Device discovery Support SNTP Time synchronization Support CPU Monitoring, Memory Monitoring Support System log, classification warning Support Ping, Traceroute detection, cable detection Support WEB Management (HTTP、HTTPS) |
| Link | |
| Device Type | POE Switch, Switches |
