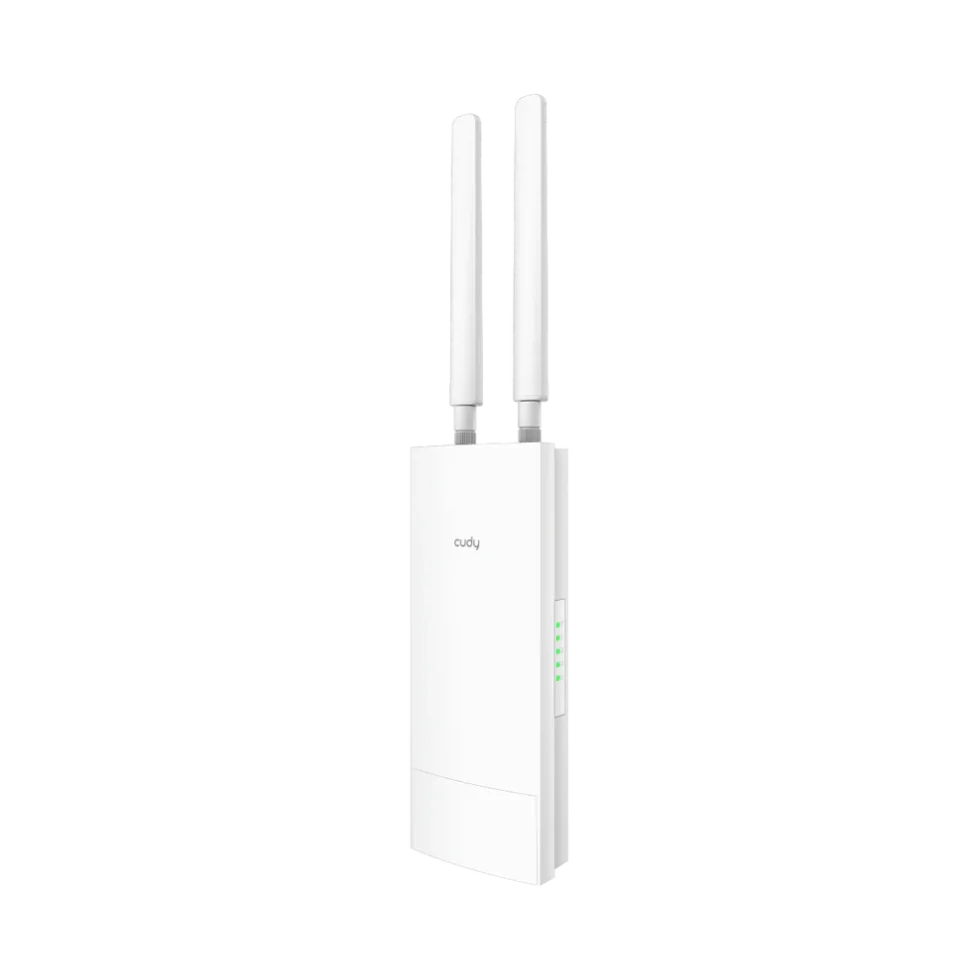

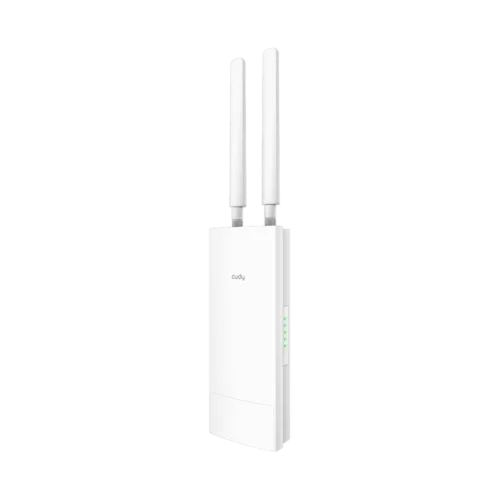

A pole/wall-mounted WiFi AP with IP65 casing, PoE, and Cudy Mesh features, ideal for park, farm, and parking lot environments.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
 |
|
 |
 |
Speedy Dual-Band AC1200 Wi-FiWith MU-MIMO and dual-band features, the AC1200 Wi-Fi AP can connect to over 30 devices while minimizing latency. The maximum number of simultaneous connections per AP is 128 devices. |
Boosted Wi-Fi Coverage with BeamformingTested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two external antennas. If your space is too large for one access point to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP. |
 |
|
Works in Rain, Thunder, Dust, Heat, ColdThe AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 4 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 °F to 149 °F (-40 ℃ to 65 ℃). |
Mesh Networks
Seamless Roaming for Smooth Wi-Fi ExperienceEnhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching. |
Plug-and-Play Mesh Installation |
|
 |
 |

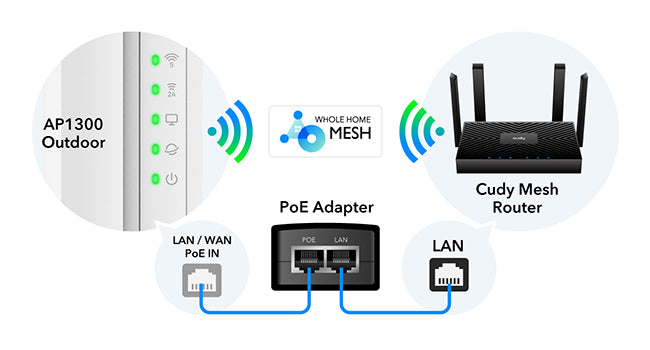

Simply Plug and Unplug for Mesh SetupConnect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or keep using Ethernet backhaul after pairing. (Requires firmware newer than 1.15.28, the other Cudy Mesh device needs to be purchased separately) |
Leave the Rest to Adaptive RoutingAdaptive Routing improves the system’s awareness of the capacity used by each node. Once the backhaul path is jammed by clients or interfered with by environmental factors, it will automatically switch to a better path for improved stability. |
Guide to Wiring and Physical Installation |
|
 |
 |
Gigabit Port with Two PoE OptionsSupports two powering methods—
If you need to simplify the wiring, we recommend using a PoE Switch that powers multiple devices simultaneously. See Cudy PoE Switches for more information. |
Mounting Kit IncludedA mounting kit is included in the box, supporting—
|
| Link | |
|---|---|
| Chipset | MT7621DAT |
| CPU Details | 880 MHz Dual-Core CPU |
| Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR3 |
| 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 2× Detchable |
| 5 GHz Antenna Gain Max | 4.37 dBi |
| 2.4 GHz Antenna Gain Max | 4.46 dBi |
| Detachable Wi-Fi Antennas Connector | RP-SMA Female |
| Beamforming | True |
| Range Performance | Max: 170 m (558 ft) Park: 150 m (492 ft) Street: 50 m (164 ft) Woods: 30 m (98 ft) |
| Wall Performance | NA |
| Gigabit RJ45 Ports | 1 |
| Ethernet Notes | Accepts PoE powering |
| LED | 5 GHz Wi-Fi 2.4 GHz Wi-Fi LAN Internet System |
| Physical Buttons | Reset Button |
| Power Input | PoE via Ethernet Port |
| Power Methods | 802.3at/af PoE Passive PoE |
| Passive PoE | 24 ~ 57V |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 48V Passive PoE |
| Max Power Consumption (W) | 11 W |
| Idle Power Consumption (W) | 7.5 W |
| Advanced | Hardware Watchdog |
| Lightning/Surge Protection | 4kV |
| ESD Contact Protection | 4kV |
| ESD Air Protection | 8kV |
| Environment | Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉) Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Ingress Protection Rating | IP65 When devices is installed vertically |
| Certifications | FCC, CE |
| Installation | Wall-mount Pole-mount |
| Dimension | Device Body: 240×100×53.7 mm 9.45×3.94×2.11 inches Each Antenna: 197.5×21.6×15.5 mm 7.78×0.85×0.61 inches |
| Package Content | AP1300 Outdoor Detachable Antennas PoE Adapter Power Cord Mounting Kit Ethernet Cable Installation Guide |
| Retail Package Weight | EU: 865 g (30.51 oz.) |
| Retail Package Dimension | 324×107×86 mm 12.76×4.21×3.39 inches |
| Device Type | Access Point, Indoor, Outdoor |
