Cudy

GS108E

● In stock

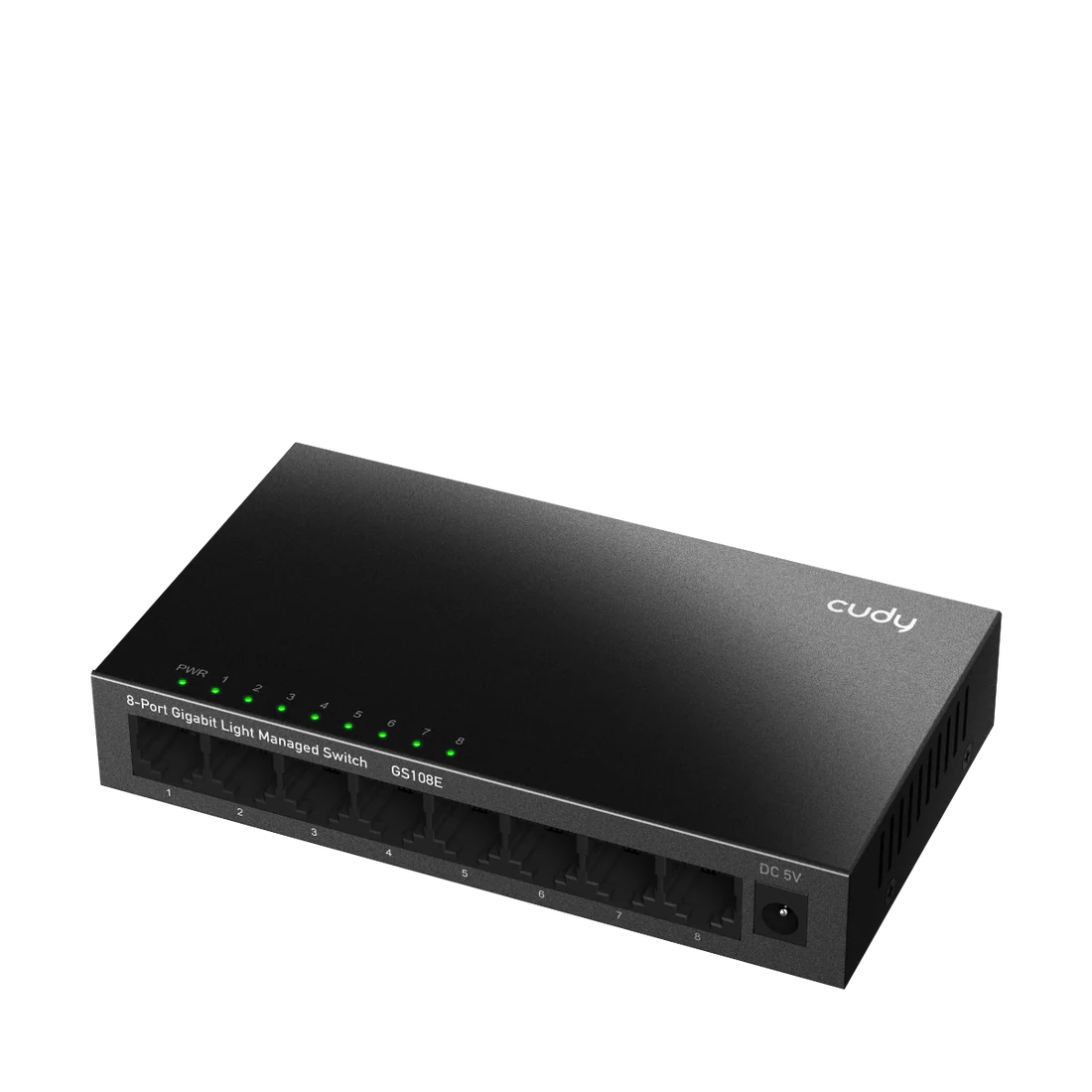

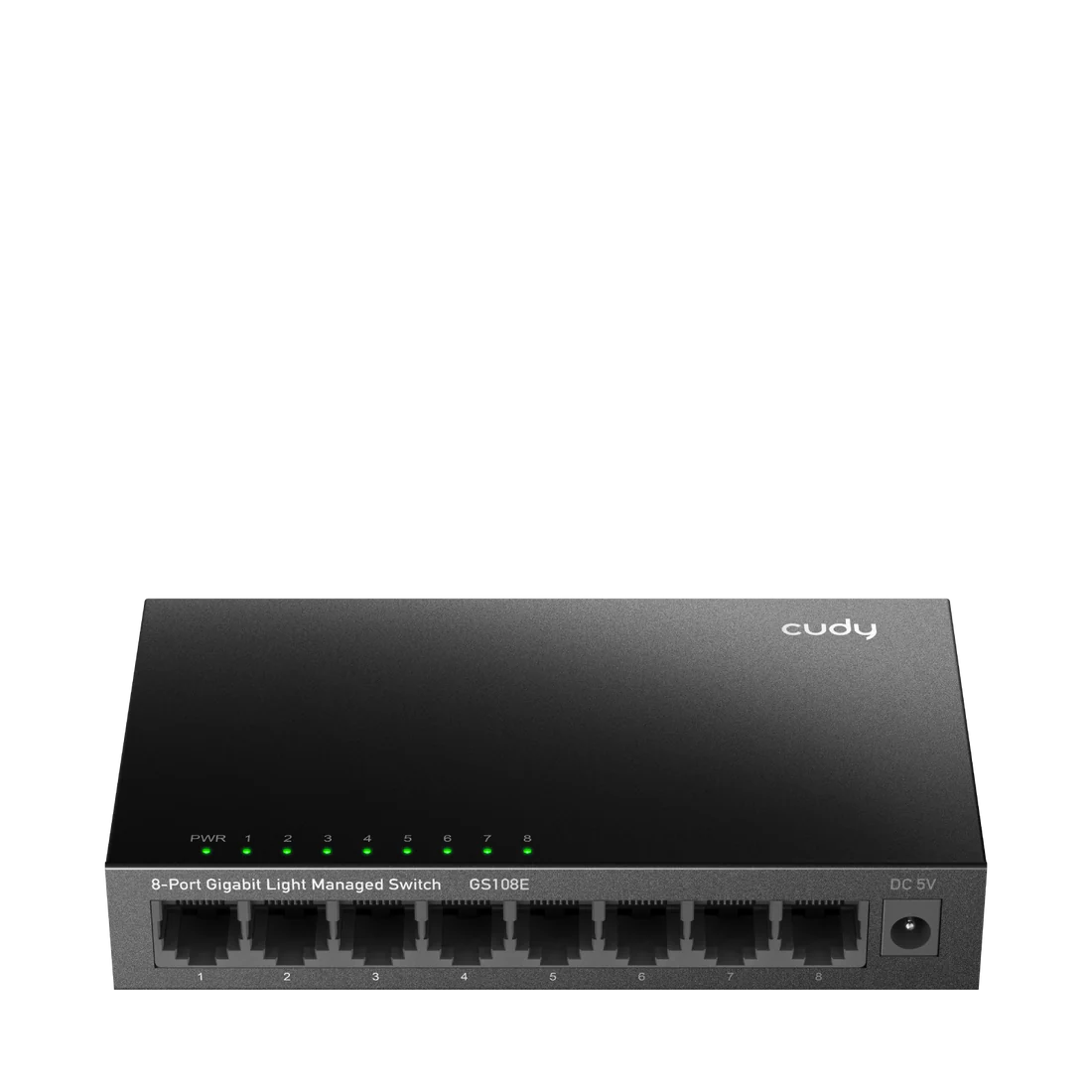

A 8-GbE switch with management features.

8× Gigabit Ethernet Ports
Web Management, SNMP
VLAN (802.1Q/MTU/Voice/Port-Based)
QoS (802.1p/DSCP/Port-Based)
Port Mirror, Static Aggregation, etc
STP/RSTP and Loop Prevention
DHCP Snooping, IGMP Snooping
EEE (802.3az Power Saving)
Desktop, Wall-Mount
138×78×25 mm (5.43×3.07×0.98″)

Category: CudyTags: Managed Switch, Switches

Description
Additional information

Description

A software features introduction to Cudy Light-Managed Switches. The actual port number varies.

Secure and High-Performance Switching

802.1Q/MTU/Port-Based/Voice VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

Essential Management Features

Link Aggregation

Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

DHCP Snooping

Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

IGMP Snooping

Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.

Loop Prevention

STP/RSTP improve performance and cut loop automatically with other managed switches. Basic Loop Prevention kicks in if STP/RSTP is inactive.

Web Configuration and SNMP V1/V2

Management Made Easy

Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.

Versatile Scenarios

Office Network

Mall Wi-Fi

Surveillance

ISP FTTB

Additional information

Device Type	Managed Switch, Switches

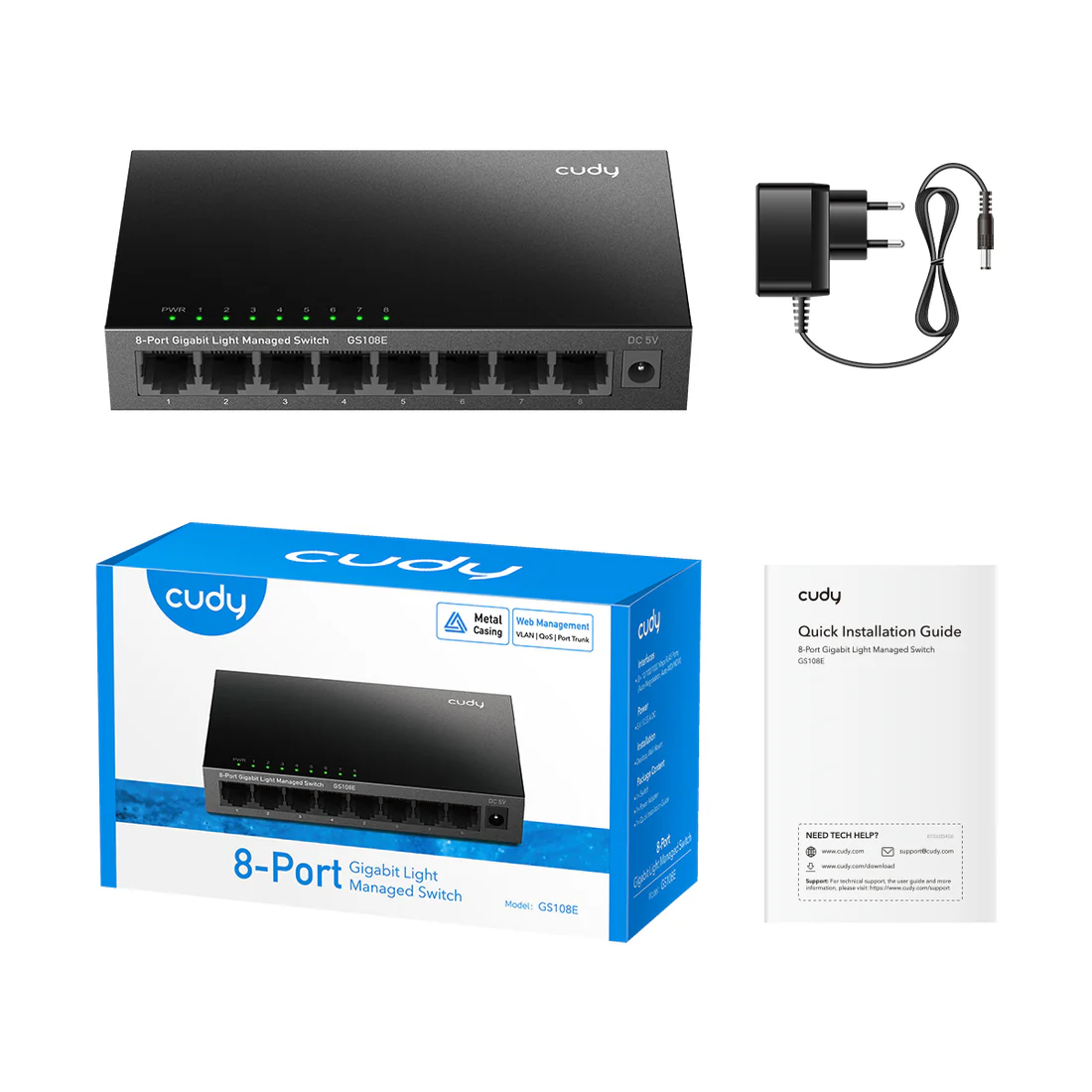

Hardware Specifications	Model Version: GS108E 1.0 Ports: 8× Gigabit RJ45, Configurable Extend Mode and VLAN Mode Ports LEDs: Power, Speed/Link/ACT per port Buttons: – MAC Address Table: 8192 entries Max Switching Capacity: 16 Gbps Max Forwarding Rate: 11.904 Mpps Jumbo Frame: 15 KB Packet Buffer: 4 Mbit Copper Cable Distance: Cat3 100 m@10 Mbps, Cat5 100 m@100 Mbps, Cat5e 100 m@1 Gbps, Cat5e 250 m@10 Mbps, Cat6 150 m@1 Gbps Power: DC 5V⎓0.55A, Adapter Input 100–240V~, 50/60 Hz, Max Power 2.75 W, Idle 2.2 W Basic Power Saving: True Operating Temp: 0~40 ℃, Storage Temp: -40~70 ℃ Humidity: Operating 10–90%, Storage 5–90% EMS: IEC/EN 61000-4-2 Level 2 ESD, IEC/EN 61000-4-5 Level 3 Surge Casing: Metal Dimensions: 138×78×25 mm Weight: 214.5 g Installation: Desktop, Wall-mount Package Content: GS108E, Power Adapter, Installation Guide
Software/Network Specifications	Protocols: 802.3i/10BASE-T, 802.3u/100BASE-TX, 802.3ab/1000BASE-T, 802.3x Flow Control, 802.3az Power Saving Layer 1/2 Features: 802.1d STP, 802.1w RSTP, 802.1p QoS, 802.1q VLAN, 802.1ab LLDP/LLDP-MED Port Management: Port On/Off, Port Negotiation Speed, Port Trunk (Static Aggregation), Port Mirror (4 sessions), Data Rate Limit, Jumbo Frame Settings, Storm Control, Traffic Monitor, MAC Address Management, EEE 802.3az Layer 2 Features: IGMP Snooping, Loop Prevention, DHCP Snooping, STP/RSTP, LLDP, MTU VLAN, Port-Based VLAN, 802.1Q VLAN, Voice VLAN, DSCP & 802.1p QoS, Port-Based QoS Management: Web Config Page, SNMP v1/v2 Firmware Upgrade: Local Upgrade, Backup & Restore Diagnostics: Cable Status/Length Diagnosis, Ping Languages: English, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
