| Hardware Specifications |
Model Version: P5 1.0
CPU: 1.0 GHz Dual-core, ARM Cortex-A53
RAM/Flash: 256 MB DDR3 / 128 MB NAND
Cellular: 5G Rel.16, 4G Cat.19 DL / Cat.18 UL, 2× Nano SIM, 4× Detachable SMA Antennas
Max Cellular Speed: 3.4 Gbps DL (NSA), 2.4 Gbps DL (SA), 550–900 Mbps UL
5G/4G Bands: Multiple global bands (see EU/US versions)
Wi-Fi: 5 GHz 2402 Mbps, 2.4 GHz 574 Mbps, 2×2 MIMO, 2× Fixed Antennas, Beamforming, FEM: 5 GHz & 2.4 GHz External
Range: Max 170 m, Two wooden walls <10 cm, One concrete wall <20 cm

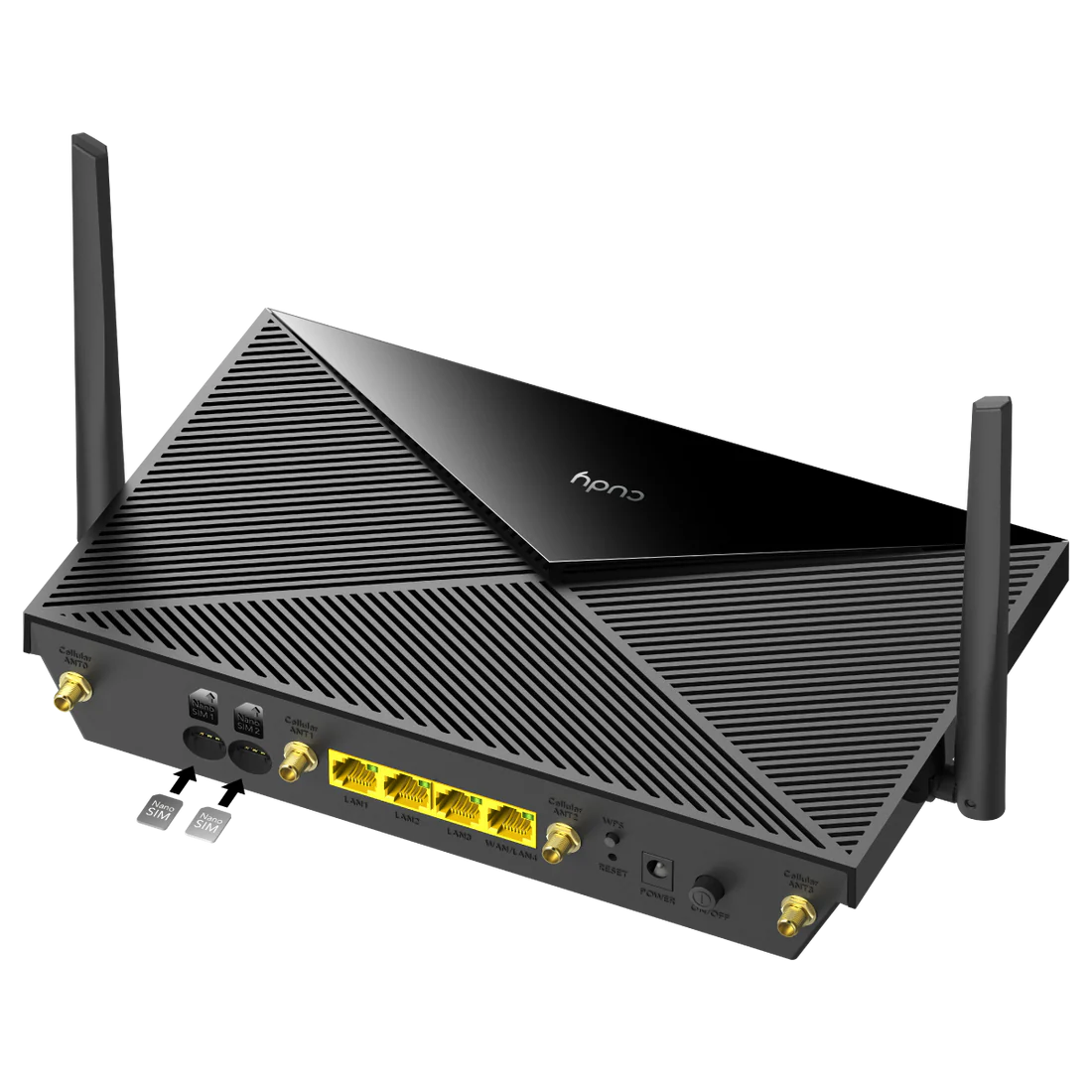

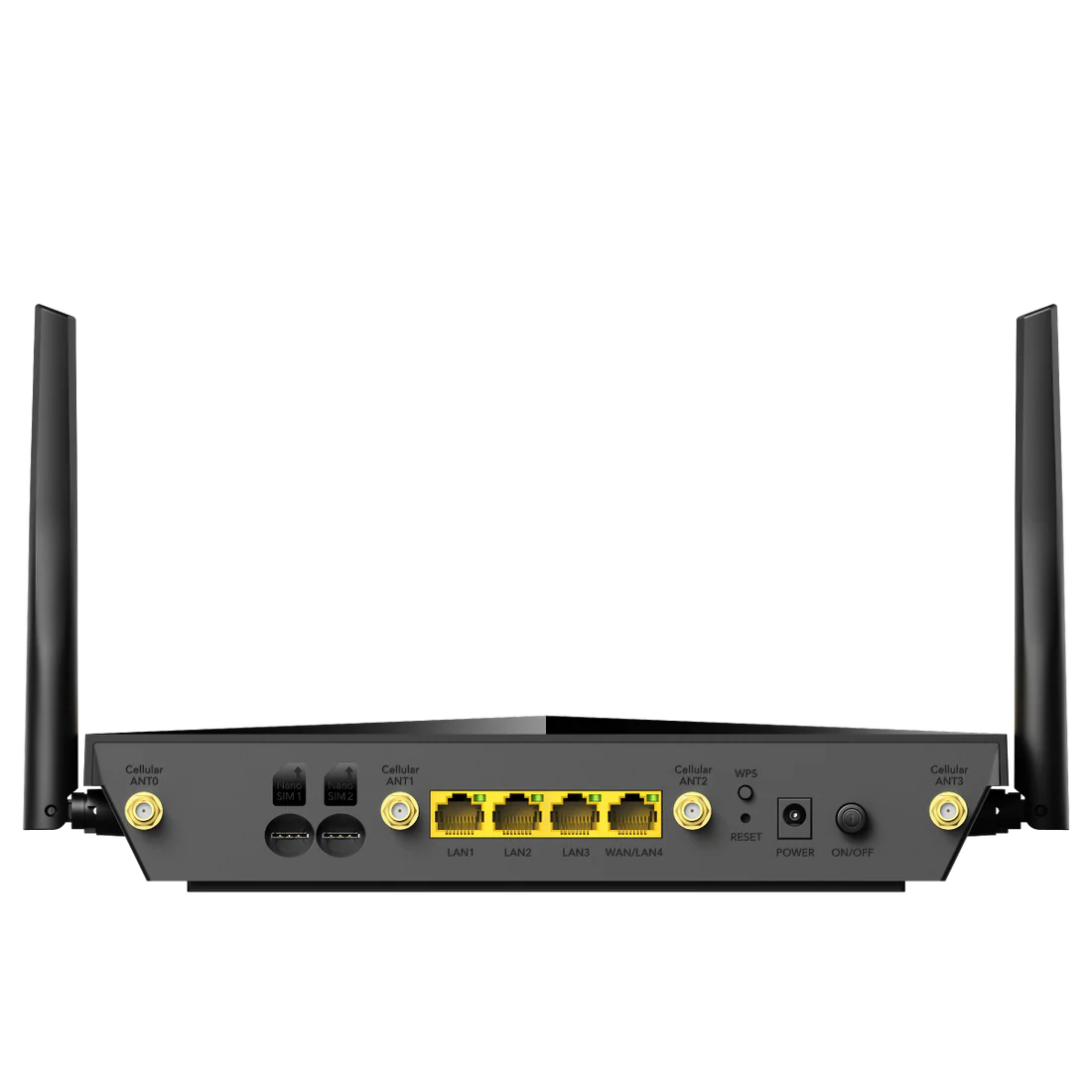

Ports: 4× Gigabit RJ45 (1 WAN/LAN configurable, 3 LAN)
Buttons: WPS, Reset
LEDs: Power, Internet, Wi-Fi, Cellular
Power: DC Jack 12V 2.5A, Adapter Input 100–240 V AC, Output 12V 2.5A DC
Operating Temp: 0–40 ℃, Storage Temp: -40–70 ℃
Humidity: Operating 10–90%, Storage 5–90%
Certifications: FCC, CE
Dimensions: 253 × 152.5 × 48.2 mm
Weight: 670 g
Installation: Desktop, Wall-mount

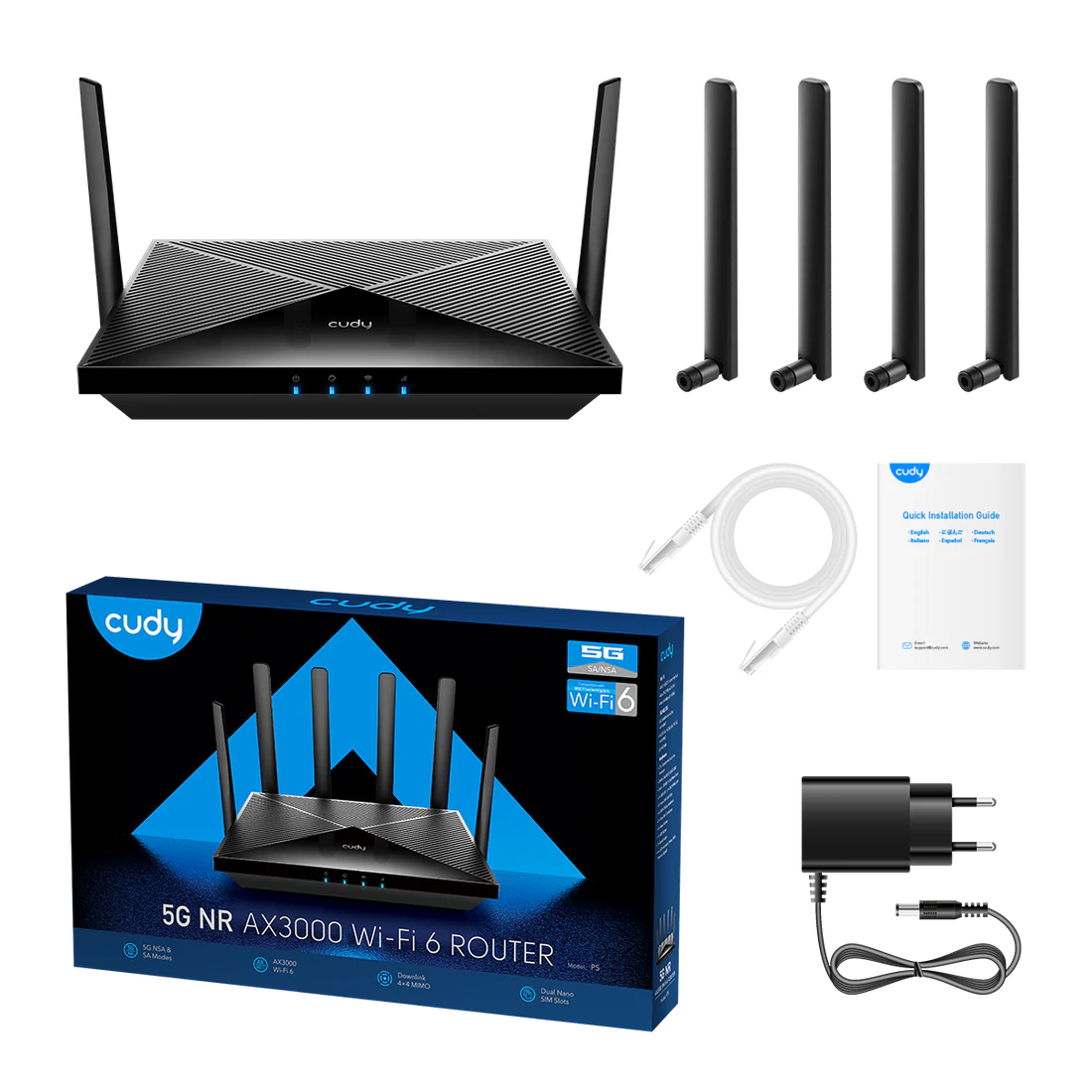

Package Content: P5, Detachable Antennas, Power Adapter, Ethernet Cable, Installation Guide
Carton: 10 units, 40.8 × 33 × 52.5 cm, Gross Weight US: 13.15 kg, EU: 13.3 kg
|
| Software Specifications |
Model Version: P5 1.0
Wi-Fi: Wi-Fi 6, 5 GHz 2402 Mbps / 2.4 GHz 574 Mbps, 2×2 MIMO, 1024-QAM, OFDMA, MU-MIMO, BSS Color
Max Clients: 100, Max Capacity: 256
Wi-Fi Security: WPA/WPA2/WPA3, Guest Network: 2.4 & 5 GHz, WPS: True
Operation Modes: Cellular Router, Wi-Fi Router
Mesh: Cudy Mesh Main, Wireless & Wired Backhaul
Cellular: 5G NSA/SA, 4G/3G, APN/Band Select/Manual Profile, WAN Failover
WAN Mode: DHCP, Static IP, PPPOE, L2TP, PPTP
QoS: Per-User Rate Limiting
DHCP: Address Reservation, Client List, Server
IP: IPv4/IPv6, Multiple IPv6 Protocols
VLAN/TTL/IGMP: Bridge, Tag VLAN, IGMP Proxy/Snooping, Port Forwarding, DMZ
Firewall & Security: SPI Firewall, DoS Protection, Block PING, Application Layer Gateway (IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP)
VPN: Server & Client (WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP)
DNS: DNS over TLS, Manual DNS, Rebind Protection, Override, Providers: Cloudflare, Google, Quad9, Custom
Wake on LAN & Online Detection: True
Parental Controls: Profiles, Offline/Online Time, Pause Internet, Web Filter
Device Management: Wi-Fi Schedule, MAC/IP Binding, Per-Device Internet/VPN Control, Rename
Content Management: Domain & IP Filter
LED Control: True
Management: Local Web/App, Remote HTTPS/App, TR069/TR098/TR111/TR143/TR181
Firmware Upgrade: Local, OTA, Online Update
Diagnostics: Ping, Traceroute, NSLookup, System Log
Reliability: Timed Reboot, Backup & Restore
Dashboard: Internet, Mesh, Cellular, SMS, WAN, LAN, Wi-Fi, VPN, DHCP, System Version
Charts: Mesh Topology, Cellular/Internet/Wi-Fi Speed
|
