C5x Mimosa Key Features
• Four Twist-On, Flexible Antenna Options
• PTP or PTMP Modes
• Extended Frequency 4.9–6.4 GHz
• Best-in-Class Noise Immunity
• Ultra Rugged, IP67
• Low-Power Consumption
• Ultra Reliable
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

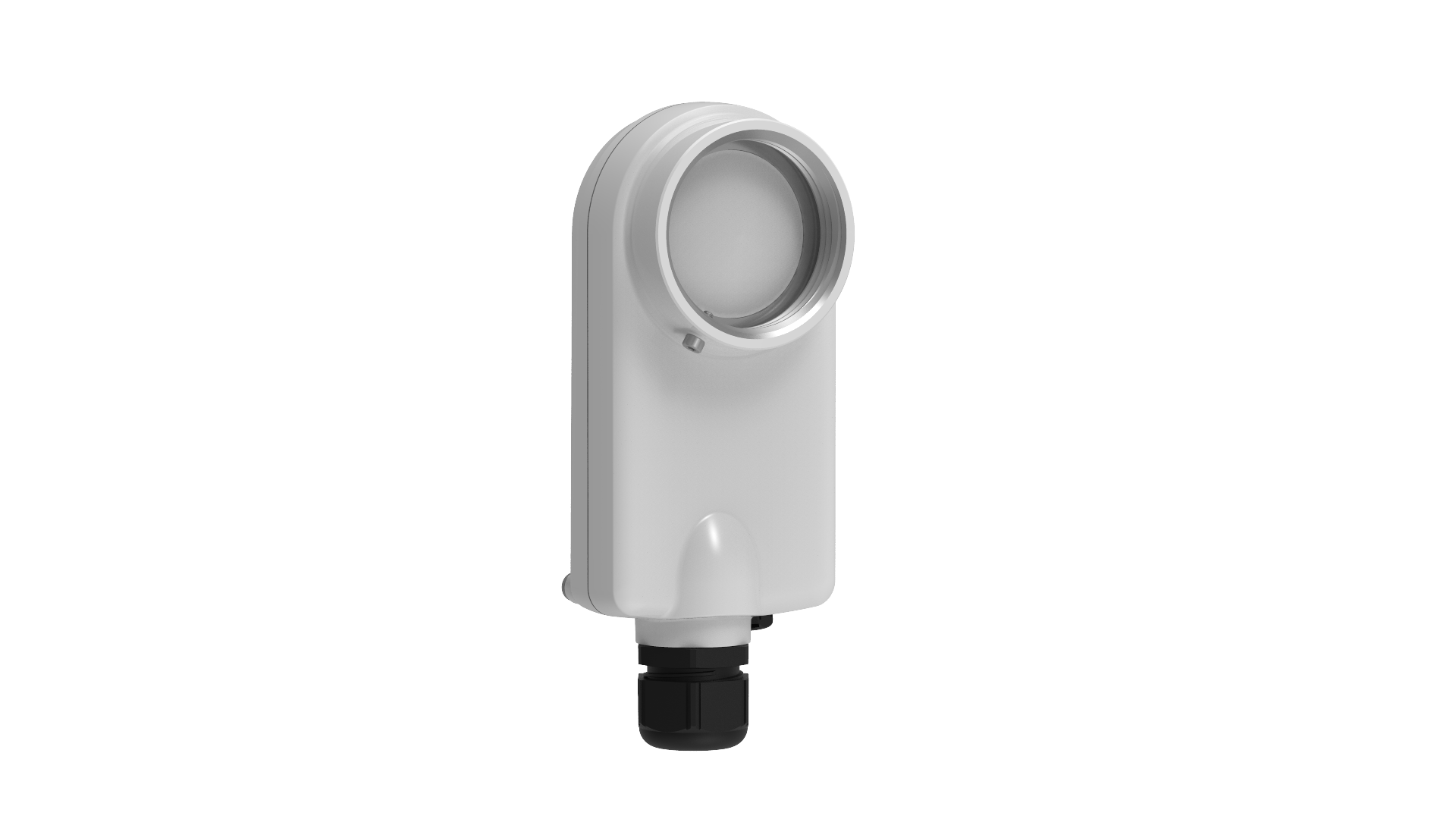

C5x Mimosa Modular & Flexible The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments.
Integrated Radio with Modular Antenna Options The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular X-series twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.
Incredible RF Performance Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.
Extended Frequency To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed X-series modular antennas are specifically optimized for C5x extended frequency support.
Reliable, Rugged, and Flexible The C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance from each of the X-series antennas. With an IP67 rating and extended 4.9–6.4 GHz frequency, you can take it almost anywhere.
| Gain | 8 dBi |
|---|---|
| Polarization | Dual-slant 45º |
| Beamwidth, Symmetric (3 dB) | 58º |
| Front-to-Back Ratio (min) | 21 dB |
| Front-to-Side Ratio (min) | 21 dB |
| Weight | 0.37 kg (0.82 lbs) |
| Dimensions | Width: 70 mm (2.76”) Length: 175 mm (6.89”) Depth: 61 mm (2.40”) |
| Mount | Dual-pole clamps |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 2.79 kg @ 160 km/h (6.14 lbs @ 100 mph) |
| Max Throughput | 700 Mbps (IP) PTP or PTMP |
| Build Material | Die-cast aluminum |
| Frequency | 4900–6400 MHz |
| IP Rating | IP67 |
| Max Output Power | 27 dBm |
| Link | |
| Device Type | 5 GHz, PTMP, PTP |
